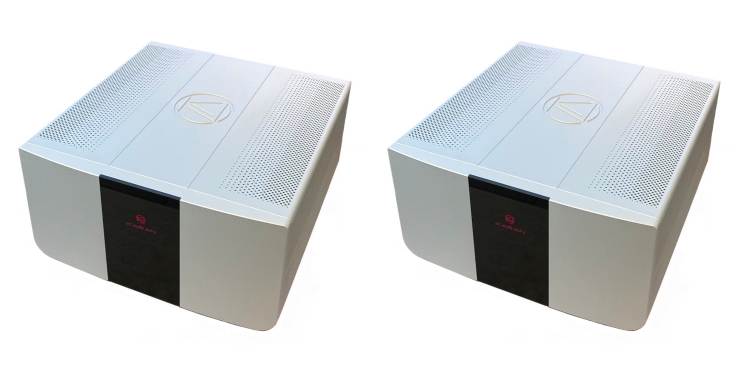

Karan Master Collection POWERb MONO, det nyeste produktet i Karans nye Master Collection-serien!
Den består nå av to effektforsterkere, to monoblokker og to forforsterkere.
www.stereonet.com
Technical specifications
The following data were consistently measured on random test objects and are typical of the product in question. Nominal operating mains (AC) voltage of all our products is 115V or 230V. If the mains supply voltage drops approximately 10% below its nominal value, the power output of our amplifiers will reduce itself by approximately 15%.
INPUTS: 1 balanced (XLR) and 1 unbalanced (RCA)
INPUT IMPEDANCE: 30 kOhm (balanced/unbalanced)
INPUT SENSITIVITY: 2.0 V/RMS (for max output)
GAIN: + 36dB
XLR PIN LAYOUT: PIN 1-ground, PIN 2-positive signal, PIN 3-negative signal
(when use RCA input you need to insert XLR shorting plug!)
POWER OUTPUT: 1.200/2.100/3.600W at 8/4/2ohm
(peak power output: 1.500W at 8ohm)
FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/-0 dB; (DC to 300kHz,-3dB)
DISTORTION: THD 0.03%
IMD 0.03%
TRANSIENT RESPONSE: Rise and Settling time < 450 ns
Slew rate 1.500 V/us (Amplification stages)
SIGNAL TO NOISE RATIO: > 120 dB (unweighted)
POWER SUPPLY: 2pcs of 2.100VA low noise toroidal transformers,
180.000uF custom made capacitors bank
AC VOLTAGE: 115 V or 230 V (nominal line voltage)
AC VOLTAGE RANGE: +/- 10% (from nominal line voltage)
WARRANTY: 5 years, parts and labor
NET DIMENSIONS: 504 x 292 x 521mm (whd); 19.8 x 11.5 x 20.5 inch (whd)
NETWEIGHT: 81kg / 178lbs (each)
PACKAGE DIMENSIONS: 720 x 410 x 738mm (whd); 28.3×16.1×29 inch (whd)
PACKAGEWEIGHT: 103kg/226lbs (each)
Karan Master Collection er nå komplett:
LINEa, PHONOa, POWERa og POWERa mono.
LINEb, PHONOb, POWERb og POWERb mono.
The LINEb costs (USD $29,000)
POWERb MONO priced at (USD $85,000)
Powerb stereo USD $43,000)
PHONOb USD $27,000
PHONOa USD $38,00
Alle priser uten moms!
Den består nå av to effektforsterkere, to monoblokker og to forforsterkere.
Karan Acoustics Master Collection Gains POWER Amplifiers
Following on from the LINEa and LINEb preamplifiers, Karan Acoustics has added the highly anticipated POWERa and POWERb stereo and monoblock power amplifiers to the brand's Master Collection.
www.stereonet.com
Technical specifications
The following data were consistently measured on random test objects and are typical of the product in question. Nominal operating mains (AC) voltage of all our products is 115V or 230V. If the mains supply voltage drops approximately 10% below its nominal value, the power output of our amplifiers will reduce itself by approximately 15%.
INPUTS: 1 balanced (XLR) and 1 unbalanced (RCA)
INPUT IMPEDANCE: 30 kOhm (balanced/unbalanced)
INPUT SENSITIVITY: 2.0 V/RMS (for max output)
GAIN: + 36dB
XLR PIN LAYOUT: PIN 1-ground, PIN 2-positive signal, PIN 3-negative signal
(when use RCA input you need to insert XLR shorting plug!)
POWER OUTPUT: 1.200/2.100/3.600W at 8/4/2ohm
(peak power output: 1.500W at 8ohm)
FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/-0 dB; (DC to 300kHz,-3dB)
DISTORTION: THD 0.03%
IMD 0.03%
TRANSIENT RESPONSE: Rise and Settling time < 450 ns
Slew rate 1.500 V/us (Amplification stages)
SIGNAL TO NOISE RATIO: > 120 dB (unweighted)
POWER SUPPLY: 2pcs of 2.100VA low noise toroidal transformers,
180.000uF custom made capacitors bank
AC VOLTAGE: 115 V or 230 V (nominal line voltage)
AC VOLTAGE RANGE: +/- 10% (from nominal line voltage)
WARRANTY: 5 years, parts and labor
NET DIMENSIONS: 504 x 292 x 521mm (whd); 19.8 x 11.5 x 20.5 inch (whd)
NETWEIGHT: 81kg / 178lbs (each)
PACKAGE DIMENSIONS: 720 x 410 x 738mm (whd); 28.3×16.1×29 inch (whd)
PACKAGEWEIGHT: 103kg/226lbs (each)
Karan Master Collection er nå komplett:
LINEa, PHONOa, POWERa og POWERa mono.
LINEb, PHONOb, POWERb og POWERb mono.
The LINEb costs (USD $29,000)
POWERb MONO priced at (USD $85,000)
Powerb stereo USD $43,000)
PHONOb USD $27,000
PHONOa USD $38,00
Alle priser uten moms!
