JSD VM
Link til alle våre EMT pickuper:
endpointaudio.no
EMT er velkjent for mange som kan litt om analog avspilling - og feiret i 2020 hele 80 år!
Dette er et trygt merke å handle, og alle pickuper kan pusses opp når de er utslitt.
2020 New Tondose
On the occasion of the 80 years EMT anniversary, we have carefully worked on a redesign in order to make the legendary TSD 15 cartridge ready for the next decades. While the well-established generator remains unchanged, the body is created as a monobloc structure, milled from a solid block of magnesium. Thus both rigidity and resonance behaviour have been significantly improved.
2020 Silver Coil
EMT offers a pure siver coil option for the entire portfolio. This is also available as an upgrade for refurbishment service.
Product Flyer
Datasheet

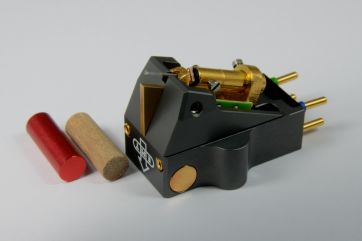

The JSD VM is the only cartridge that allows the user to tune the resonance behaviour according the tonearm specification and personal preference. It comes with three inlay bolts made of different materials.
All EMT reference-line cartridges feature a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
Link til alle våre EMT pickuper:
Pickuper Arkiver - Endpoint Audio
endpointaudio.no
EMT er velkjent for mange som kan litt om analog avspilling - og feiret i 2020 hele 80 år!
Dette er et trygt merke å handle, og alle pickuper kan pusses opp når de er utslitt.
2020 New Tondose
On the occasion of the 80 years EMT anniversary, we have carefully worked on a redesign in order to make the legendary TSD 15 cartridge ready for the next decades. While the well-established generator remains unchanged, the body is created as a monobloc structure, milled from a solid block of magnesium. Thus both rigidity and resonance behaviour have been significantly improved.
2020 Silver Coil
EMT offers a pure siver coil option for the entire portfolio. This is also available as an upgrade for refurbishment service.
Product Flyer
Datasheet
The JSD VM is the only cartridge that allows the user to tune the resonance behaviour according the tonearm specification and personal preference. It comes with three inlay bolts made of different materials.
All EMT reference-line cartridges feature a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
| Diamond: | MR HP |
| Cantilever: | Sapphire |
| Transducer: | MC Stereo |
| Magnet: | AlNiCo, gold-plated |
| Body: | variable mass, graphite anodized |
| Connection: | 1/2" – 4pin |
| Vertical Tracking Angle: | 23° |
| Weight: | 10…12g |
| Tracking force: | 2,4g |
| Output voltage: | 1.05mV @ 5cm/s |
| Compliance: | 12µm/mN |
| Frequency response: | 20 - 30‘000Hz |
| Impedance: | 2x 24Ω |
| Recommended load: | 200 - 300Ω |
- Originalemballasje
- Ja
- Orig. kvittering
- Ja
- Forsendelse
- Kan sendes
