Annonse beskrivelse
Annonse nummer: 227517
Et must for alle High-End DACer

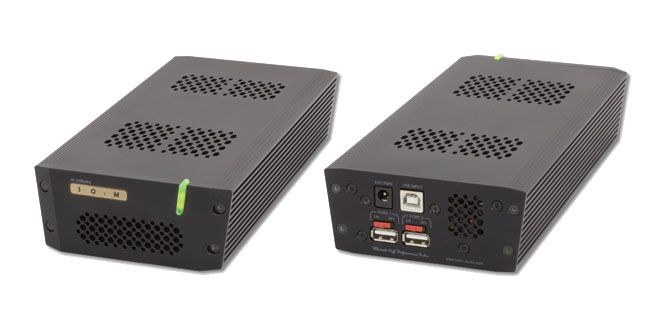

SOtM TX-USBultra er en USB regenerator, re-klokker og filter designet for å gi den beste og optimale USB signalet. Word clock sync inngang er også mulig installere, slik at man bruke en master klokke enhet ( Mutec , SoTMf.eks) for å synkronisere flere digitale kilder og enheter . Lydkvaliteten forbedres betraktelig. Produktet fungerer med alle DACer.

Flere omtaler og brukererfaringer på nett:
https://www.youtube.com/watch?v=U4RYineYsF0

Key features:
USB audio signal regenerated by sCLK-EX
Custom designed ultra low phase noise oscillation circuit
Isolated differential clock signal circuit
Wide operating voltage input range
Ultra low noise regulator circui
Optional 10MHz master clock input
2 ports USB hub
USB port power ON/OFF switch

Indicate LED
Power x 1

USB host interface
Type B USB connector

USB output Ports
Type A USB 2.0 connector x 2
USB power on/off switch

USB interface chip set
USB 2.0 Compliant HUB controller
HS(480 Mbps), FS(12 Mbps), LS(1.5 Mbps) support

Internal reference clock
sCLK-EX12 board

External master clock input : Optional
Input frequency : 10MHz
Isolated clock input
50? BNC connector x 1

Power regulation circuit
Custom designed ultra low noise regulator circuit x 5
Standard ultra low noise regulator circuit x 1
Active noise canceler circuit
External power input
Input voltage : +6.5V ~ +9Vdc(Optional 12.0Vdc)
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack

USB port output power
Output voltage : +5.0V(+0.5V, -0.25V)
Over current protection : 0.8A at 20°C
Recommend output current : 0.5A >

Operating environment
Operating temperature : +10 ~ +30?
Storage temperature : 0 ~ +40?
Operating & storage humidity : 10% ~ 90%
