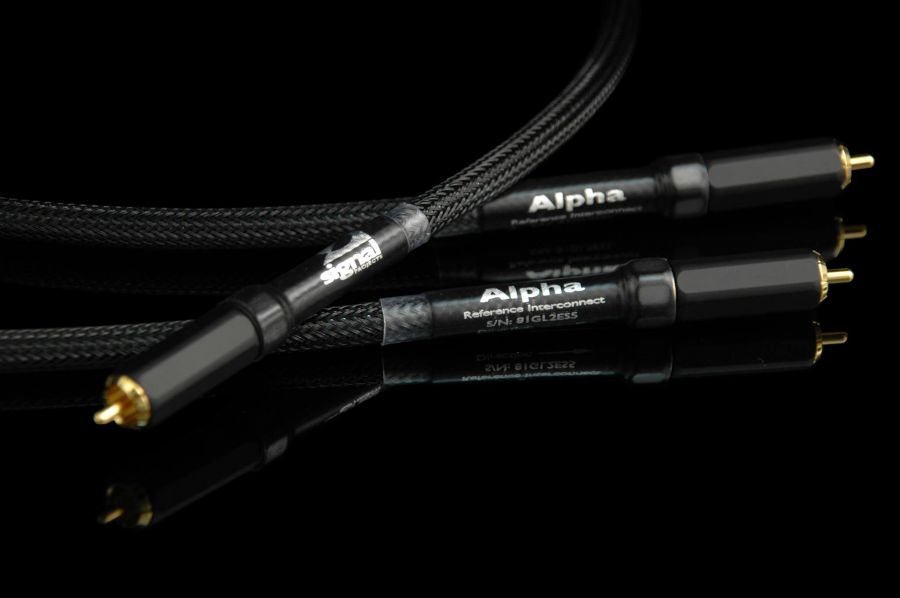

The Signal Projects Alpha range may be their entry level, but they enter in a league where some are signing off. Construction is every bit as solid as the top model, and they incorporate all important design factors including high purity copper conductors, braided shielding throughout, and low resistance connectors.
Signal Projects firmly believe that although a wire is just a simple connection between two devices, for those whose intention is to realise the ultimate performance of a system it would be totally unwise to rely on simplistic cable applications. The cable manufacturing process is demanding due to the large number of factors that need to be considered in order to maximise performance without adversely affecting sonic characteristics. Factors such as resistance, capacitance, impedance, inductance, skin effect, power loss, proximity effect and many others can affect cables, as can the effectiveness of shielding, grounding, insulation and overall build quality. The application of proper scientific principles produces excellent, measurable results. Virtually all Signal Projects cables have capacitance values of between 35pF and 85pF per metre and inductance as low as 2uH.
Conductor:
Type: multi-core conductors
Cross sectional area: 0,82 mm2
Metals: copper
Purity: 99,99997%
Specifications:
Capacitance (RCA): 37,9 pF/ft @ 1 kHz
Capacitance (XLR): 23,75 pF/ft @ 1 kHz
Resistance: 8,59 m?/ft @ 1 kHz
Inductance: 0,67 ?H/ft @ 1 kHz
Shielding: aluminium foil, braided copper
Conductors? Insulation: Polytetrafluoroethylene
test:
https://issuu.com/moizfidelity/docs/alpha_hef_1_2018_klein
Signal Projects firmly believe that although a wire is just a simple connection between two devices, for those whose intention is to realise the ultimate performance of a system it would be totally unwise to rely on simplistic cable applications. The cable manufacturing process is demanding due to the large number of factors that need to be considered in order to maximise performance without adversely affecting sonic characteristics. Factors such as resistance, capacitance, impedance, inductance, skin effect, power loss, proximity effect and many others can affect cables, as can the effectiveness of shielding, grounding, insulation and overall build quality. The application of proper scientific principles produces excellent, measurable results. Virtually all Signal Projects cables have capacitance values of between 35pF and 85pF per metre and inductance as low as 2uH.
Conductor:
Type: multi-core conductors
Cross sectional area: 0,82 mm2
Metals: copper
Purity: 99,99997%
Specifications:
Capacitance (RCA): 37,9 pF/ft @ 1 kHz
Capacitance (XLR): 23,75 pF/ft @ 1 kHz
Resistance: 8,59 m?/ft @ 1 kHz
Inductance: 0,67 ?H/ft @ 1 kHz
Shielding: aluminium foil, braided copper
Conductors? Insulation: Polytetrafluoroethylene
