Butikk Response Grand Dimension

Inbytt högtalare tillverkad av Reidar Persson.

Uppgraderad till nyare version med berylium diskant och nya mellanregister av Reidar själv. Kvitto på uppgradering finns.

80+ kg tunga.

Länk till hemsida:



Specifications:

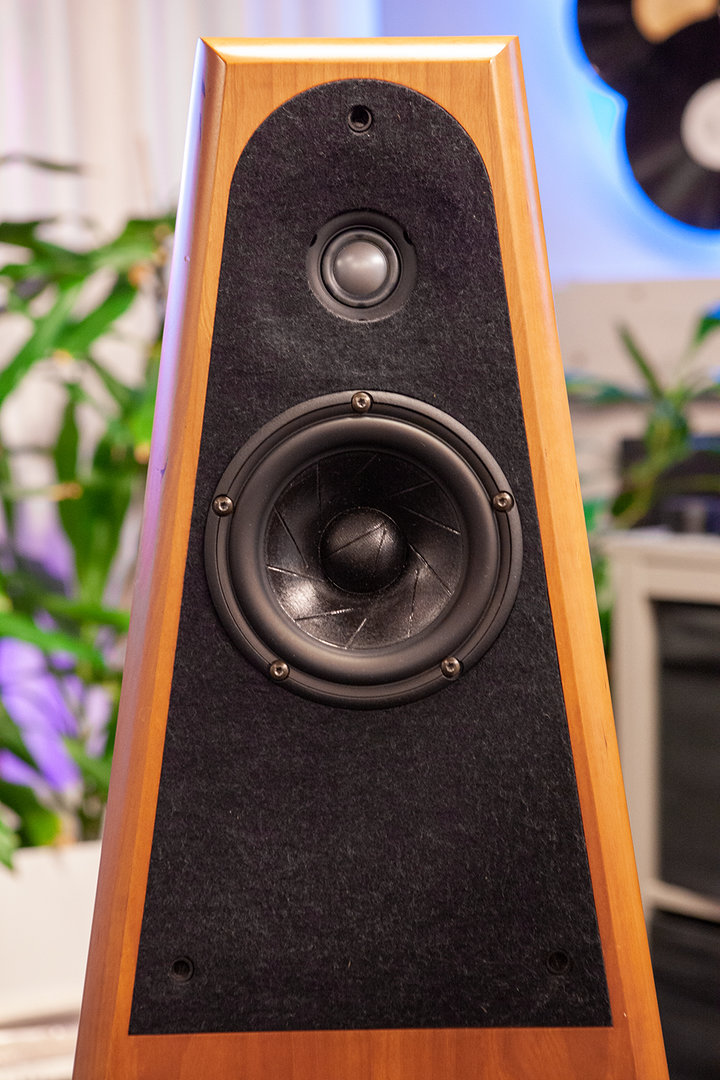

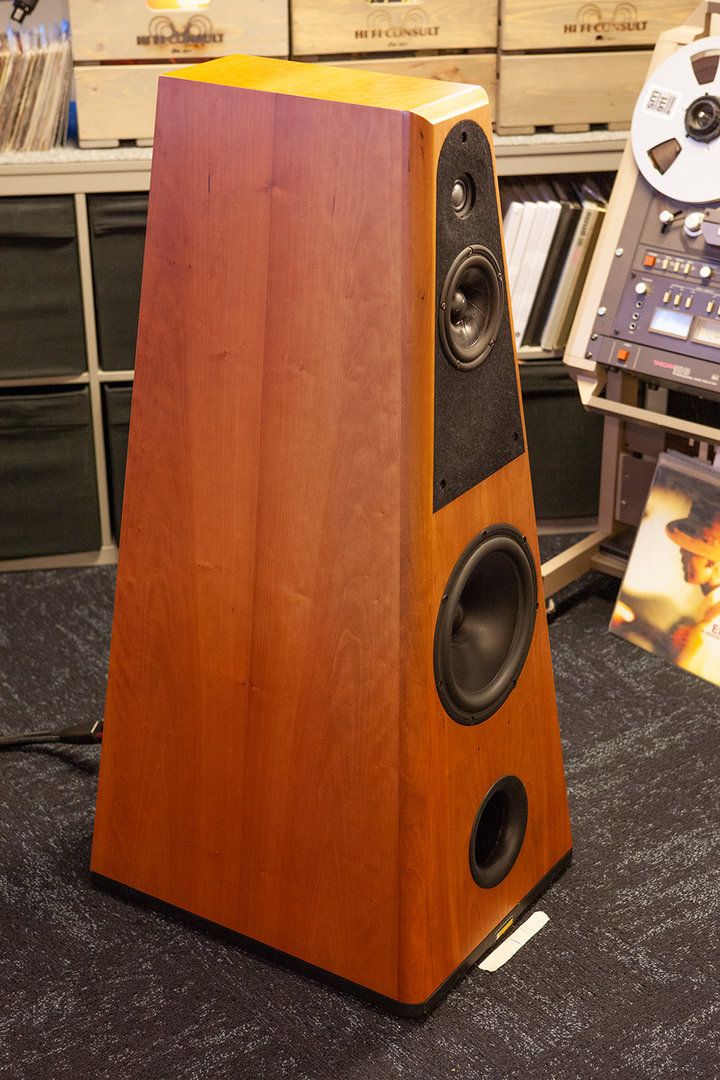

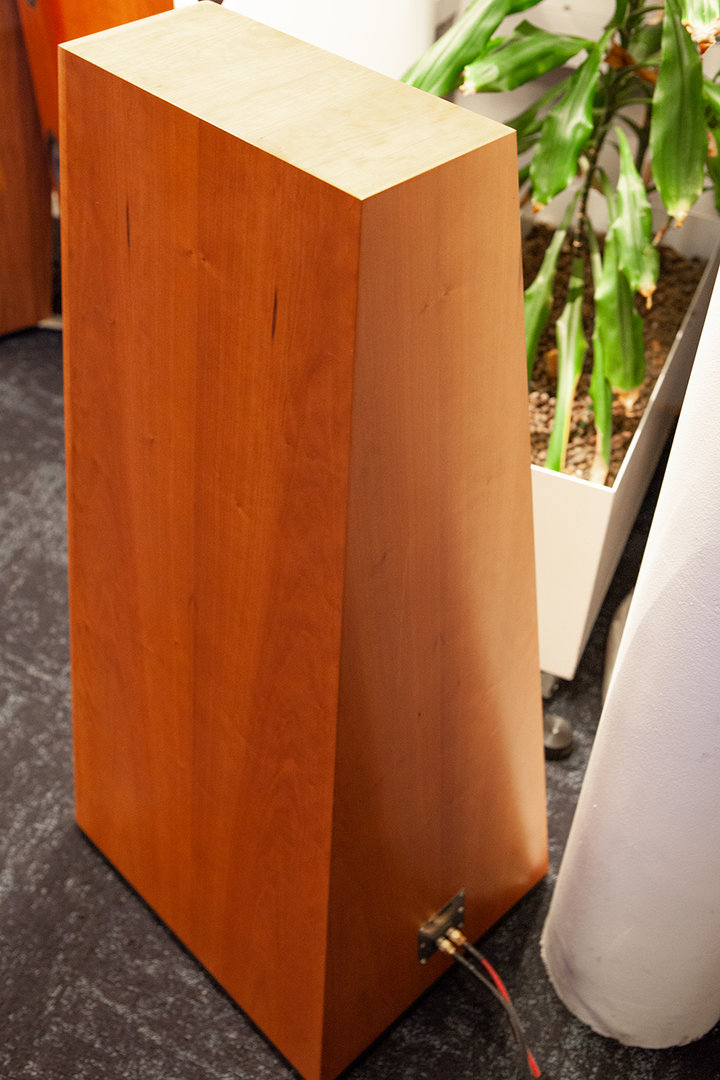

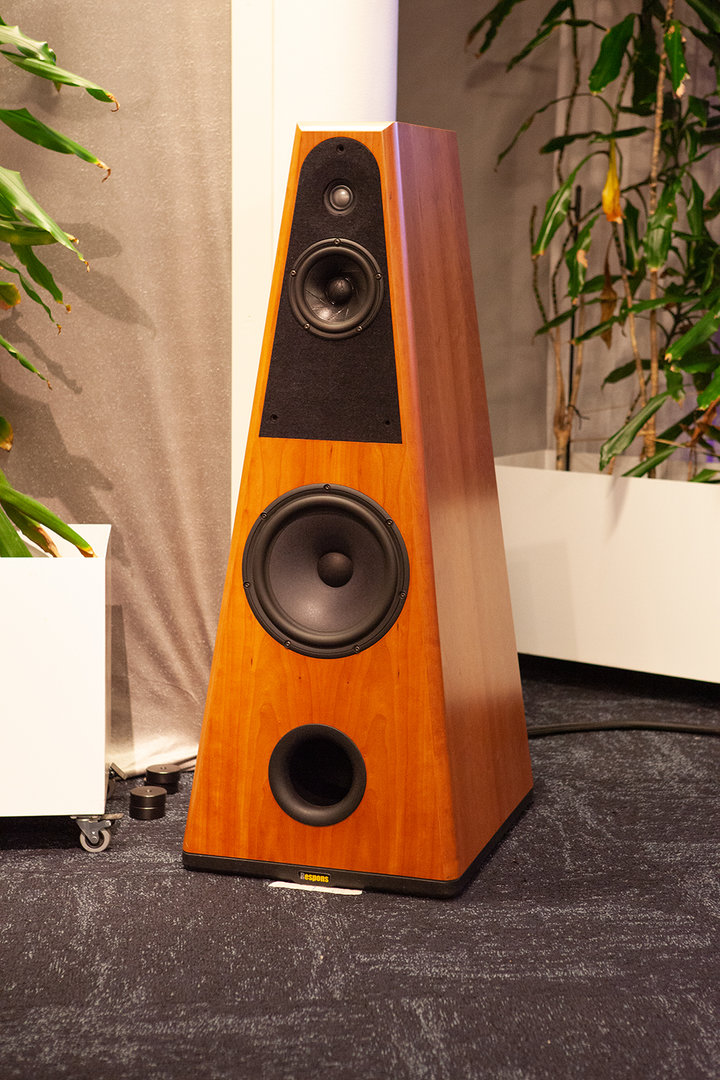

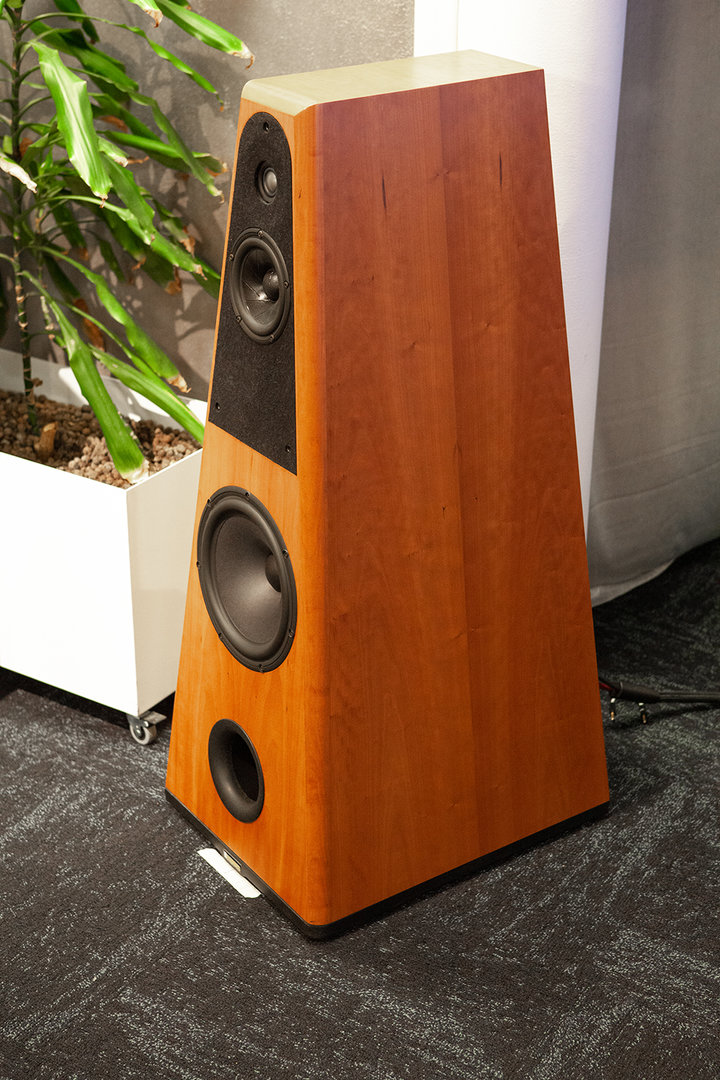

Three-way, floor standing, full range bass-reflex design. The cabinet is a 50 mm HD sandwich construction with viscoelastic layer.

1" Scan Speak, Ringradiator
5" Scan Speak, Mid
10" Scan Speak, Bass
Sensitivity: 2,83V 86dB/ m
Nominal impedance: 4 ohm

Frequency response:
28 Hz - 40 kHz
- High frequency response: Full level above 40 kHz
- Echo free: 200 Hz - 20 kHz ± 1 db
- Low frequency response: -3 db 28 Hz

Crossover:
Hand-built point-to-point wired crossover specified at 0,5% tolerance
Crossover slopes: 24 db/octave. acoustical
Crossover frequencies: 350hz, 3500hz

Components:
0,5% tolerance matched propylene capacitors
0,5% tolerance Custom Air cored inductors
Temperature stable resistors
Internal wiring: Custom made
Connection: Rhodium Binding post from Cardas

Dimensions:
Height: 112,0 cm
Width: 43,6 cm
Depth: 54,5 cm
Weight: 85 kg each
Shipping dimensions: 69x58x129cm,
Volume 0,515 m3
