Vi har nå begynt å forhandle SoundSmith Pickupper.

Har stort sett Otello, Carmen og Boheme på lager. Leveringstid på andre SoundSmith produkter ca 2-3 dager.

Norsk Audio Teknikk AS
Ullevålsveien 13
0165 Oslo.

Tlf: 22200095
mail: morten@norskaudioteknikk.no

Link prisliste: http://norskaudioteknikk.no/Priser/s...ith-priser.pdf


Soundsmith



High output pickupper

Otello

Navn:      1.jpg
Visninger: 743
Størrelse: 13.3 Kb
Stylus: Elliptical Titanium Bonded, 0.20mm Round
Radius of curvature: 6 x 17 µm
Cantilever: Aluminum Alloy
Recommended Tracking Force: 1.2 gm (Max)
Effective tip mass: 0.50 mg
Compliance: 28 µm/mN (high)
Frequency Response: 20-20,000 Hz (±2.5 dB)
Channel Separation: 1000 Hz: >24 dB 50-15,000 >20 dB
Channel Difference: <1.8 dB
Output Voltage: 2.2 mV
Weight: 6.8 Gms
Impedance: >/= 47 kOhms
Capacitance: 100-200pF


Carmen

Navn:      2.jpg
Visninger: 749
Størrelse: 13.8 Kb
Stylus: Nude Elliptical, 0.120mm SQ
Radius of curvature: 6 x 17 µm
Cantilever: Aluminum Alloy
Recommended Tracking Force: 1.4 gm
Effective tip mass: 0.35 mg
Compliance: 22 µm/mN
Frequency Response: 20-20,000 Hz (±2.5 dB)
Channel Separation:
1000 Hz: >26 dB
50-15,000 >20 dB
Channel Difference: <1.6 dB
Output Voltage: 2.2 mV
Weight: 6.8 Gms
Load:
Resistance: >/= 47 kohms
Capacitance: 100-200pF



Boheme

Navn:      3.jpg
Visninger: 742
Størrelse: 12.5 Kb
Stylus: Contact Line Nude, 0.120mm SQ
Radius of curvature: Contact Line
Cantilever: Ruby
Recommended Tracking Force: 1.3 gm
Effective tip mass: 0.32 mg
Compliance: 22 µm/mN
Frequency Response: 20-20,000 Hz (±2.5 dB)
Channel Separation:
1000 Hz: >28 dB
50-15,000 >20 dB
Channel Difference: <1.4 dB
Output Voltage: 2.2 mV
Weight: 6.8 Gms
Load:
Resistance: >/= 47 kohms
Capacitance: 100-200pF

Zephyr

Navn:      4.jpg
Visninger: 731
Størrelse: 11.3 Kb
Stylus: True Nude Elliptical, 0.120mm SQ
Radius of curvature: 6 x 17 µm
Cantilever: Aluminum Alloy
Recommended Tracking Force: 1.8-2.2 gm
Effective tip mass: 0.35 mg
Compliance: 10 µm/mN
Body material: Corian and Brass
Frequency Response: 15-45,000 Hz (±2.5 dB)
Channel Separation:
1000 Hz: >38 dB
50-15,000 >25 dB
Channel Difference: <0.5 dB
Output Voltage: 2.4 mV
Weight: 10.27 Gms
Load:
Resistance: >/= 47 kohms
Capacitance: 100-200pF

Aida

Navn:      5.jpg
Visninger: 711
Størrelse: 13.0 Kb

Anmeldelse af Soundsmith Aida fra Audio Ideas her

Stylus: Contact Line NUDE, 0.100mm SQ
Radius of curvature: Optimized Contact Lin
Cantilever: Ruby
Recommended Tracking Force: 10mN / 1.0 gm
Effective tip mass: 0.32 mg
Compliance: 22 m/mN
Frequency Response: 20-20,000 Hz (±2.5 dB)
Channel Separation:
1000 Hz: >30 dB
50-15,000 Hz: >20 dB
Channel Difference: <1.0 dB
Output Voltage: 2.2 mV
Weight: 6.8 Gms
Load:
Resistance: >/= 47 kohms
Capacitance: >/= 400 pF

The Voice

Navn:      6.jpg
Visninger: 739
Størrelse: 14.4 Kb
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Optimized Contour Contact Line
Cantilever: Ruby
Recommended Tracking Force: 1.3 Gm
Effective tip mass: 0.30 mg
Compliance: 22 µm/mN
Frequency Response: 20-20,000 Hz (±1.0 dB)
Channel Separation:
1000 Hz: >30 dB
50-15,000 >22 dB
Channel Difference: <0.5 dB
Output Voltage: 2.2 mV
Weight: 6.8 Gms
Load:
Resistance >/= 47 kohms
Capacitance: 100 - 200 pF

Low output pickupper

Paua

Navn:      7.jpg
Visninger: 765
Størrelse: 15.0 Kb
StylusContact Line Nude, 0.100mm SQ
Radius of curvature Nude Contact Line SELECTED
CantileverTelescoping Aluminum Alloy
Recommended Tracking force:1.7 to 1.9 Grams
Effective tip mass 0.30 mgCompliance10µm/mN (low compliance)
Frequency response 20-20,000 Hz ± 1.0 dB
Channel Separation (stereo only)
1000 Hz >34 dB
50-15,000 >25 dB
Channel difference
<0.5 dB (Stereo)
<1.0 dB (Mono)
Output @5 cm/sec0.3 mV
Cartridge weight 10.25 Grams
Loading:470 Ohm model Standard
Loading range 300-800 Ohms recommended load

Sussero

Navn:      8.jpg
Visninger: 769
Størrelse: 14.9 Kb
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Optimized Contour Contact Line SELECTED
Cantilever: Ruby
Recommended Tracking Force: 1.8-2.2 gm
Effective tip mass: 0.30 mg
Compliance: 10 µm/mN
Frequency Response: 20-20,000 Hz (±1.0 dB)
Channel Separation:
1000 Hz: >34 dB
50-15,000 >25 dB
Channel Difference: <0.5 dB
Output Voltage: >0.3 mV
Weight: 8.79 Gms
Load: >470 ohms, 1k-2kOhms recommended

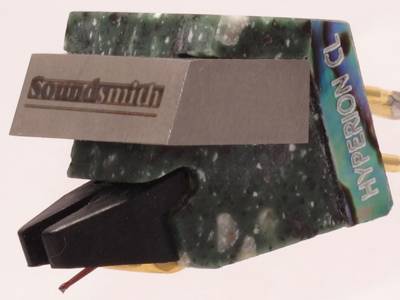

Hyperion

Navn:      9.jpg
Visninger: 705
Størrelse: 13.4 Kb
StylusContact Line Nude, 0.100mm SQ
Radius of curvature Selected Diamond shapes: CL or Optimized (OCL)
CantileverHand formed/treated selected Cactus "Spine"
Recommended Tracking force:1.8 to 2.2 Grams
Effective tip mass 0.30 mg
Compliance
10µm/mN (low compliance)
(LT) 12µm/mN vertical/7µm/mN horizontal
Frequency response 20-20,000 Hz ± 1.0 dB
Channel Separation (stereo only)
1000 Hz >36 dB (LT: > 34dB)
50-15,000 >25 dB
Channel difference
<0.5 dB (Stereo)
<1.0 dB (Mono)
Output voltage: 5 cm/sec. Lat. RMS0.3 mV
Cartridge weight 10.25 Grams
Load:470 Ohm model now available
Loading range 300-800 Ohms recommended load
