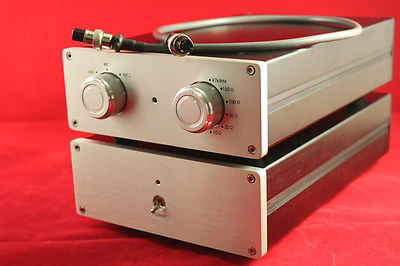

Noen som har kjenskap til denne?
Features:
1. Two chassis design, power supply section was separate from main citcuit to get best signal/noise ratio.
2. Gigh grade CDE 2700uf/40v capacitor used for main power filtering, and multiple stage voltage regulator for circuits. Clean and sufficient electric supply is most important basis for good sound.
3. 4 stage CR/NF RIAA circuit offer most accurate RIAA curve.
4. Best parts usage inside including ROE caps for decoupling. Philips metafilm precision resistor, Matched Toshiba [FONT=宋体]2SA1360 2SC342 2SC3421 2SA1358 [/FONT]transistor, long crystal OFC copper internal wires .... All very high quality parts was used in this product.
5. Handmade product by skilled electric specialist. Every TF-1 will be carefully assembly and pass 24hours burn-in test before shipping out.
6. Both MM / MC cartridge supported, This phono can support 10, 20, 30, 50, 100, 150 Ohm output impedance MC cartridge, almost all type MC cartridges on markets supported.
7.[FONT=宋体] THD 20Hz-20kHz:0.05%;RIAA curve accuracy :0.2%
MM mode have 100x amplification (40db)
MC1 mode is 800x amplification (55db)
MC2 mode is 1500x amplification (65db)
mvh
[/FONT]
Features:
1. Two chassis design, power supply section was separate from main citcuit to get best signal/noise ratio.
2. Gigh grade CDE 2700uf/40v capacitor used for main power filtering, and multiple stage voltage regulator for circuits. Clean and sufficient electric supply is most important basis for good sound.
3. 4 stage CR/NF RIAA circuit offer most accurate RIAA curve.
4. Best parts usage inside including ROE caps for decoupling. Philips metafilm precision resistor, Matched Toshiba [FONT=宋体]2SA1360 2SC342 2SC3421 2SA1358 [/FONT]transistor, long crystal OFC copper internal wires .... All very high quality parts was used in this product.
5. Handmade product by skilled electric specialist. Every TF-1 will be carefully assembly and pass 24hours burn-in test before shipping out.
6. Both MM / MC cartridge supported, This phono can support 10, 20, 30, 50, 100, 150 Ohm output impedance MC cartridge, almost all type MC cartridges on markets supported.
7.[FONT=宋体] THD 20Hz-20kHz:0.05%;RIAA curve accuracy :0.2%
MM mode have 100x amplification (40db)
MC1 mode is 800x amplification (55db)
MC2 mode is 1500x amplification (65db)
mvh
[/FONT]
