LED Display 3 digit

[sonicfrontiers]

Er det noen som vet hvor denne spesifikke komponenten kan skaffes?

Sonicfrontiers



[Ine123]

Hei
Dette er hva jeg fant:

I found your direct replacement if you ever need one again. Here is a little more information to help.
Your P/N was:

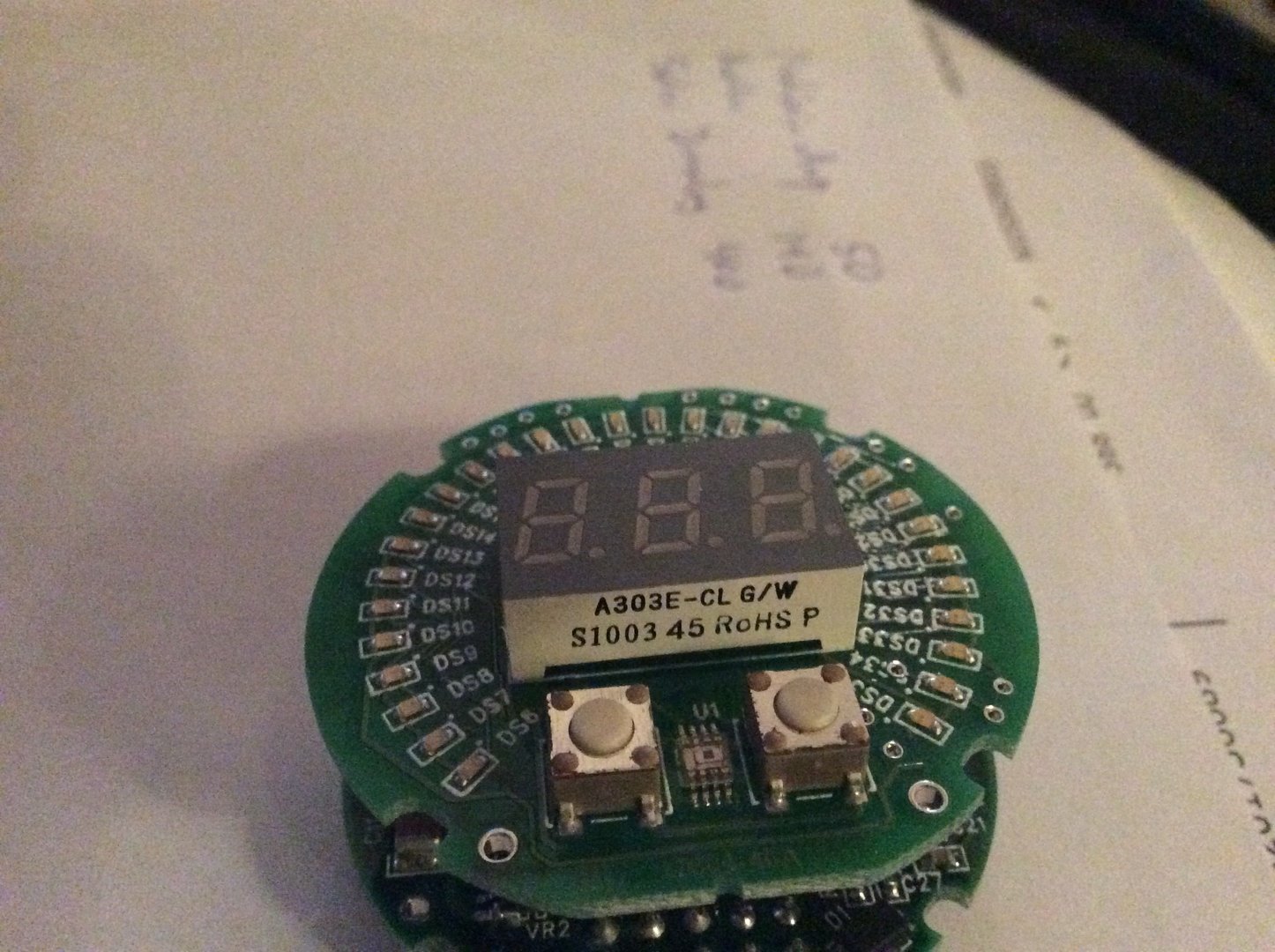

A303E-CL G/W

A signifies Common Anode.

E designates color as Red High Efficiency.

G = Green, Y = Yellow, R = Super Red

Therefore the P/N equivalents would be A303X with X being any letter. Looking at the specifications, the current and voltage differences are insignificant from a circuit functionality perspective for what we need these for.

The readout is a 3 digit, 24 LED.

Mfg: American Opto Plus

Pinout indicates no connection for pin 10.

Pin 1 starts Lower Left looking from top view of readout through the device
The direct replacement parts can be ordered through:

DComponents

www.DComponents.com

The readout cost was $3.36 each for the exact replacement and $3.31 for other colors.

Leadtime is about 4-6 weeks if they do not have it in stock.

They had green in stock so I bought 3 and back ordered the exact parts.

LINK:
Da har du litt data for dette Led displayet, så gjelder det å finne en ekvivalent ?
Mvh.
Johnny



[sonicfrontiers]

Hei Johnny

Takker for svar.
Ser det er flere som har samme problem på akkurat samme elektronikk.
Sikkert en konstruksjonsfeil på displayet som resulterer i kort levetid.
Et ledsegment skal jo vare i tusenvis og sikkert titusenvis av timer.
Var vrien å finne dette LED displayet.
Skal se litt på linken du sendte videre i ettermiddag.
Takk for hjelpen så langt.

Roger
