Dette er de to nyhetene Lumin kom med på Munchen messa i år.
Her er en presentasjon av de begge:

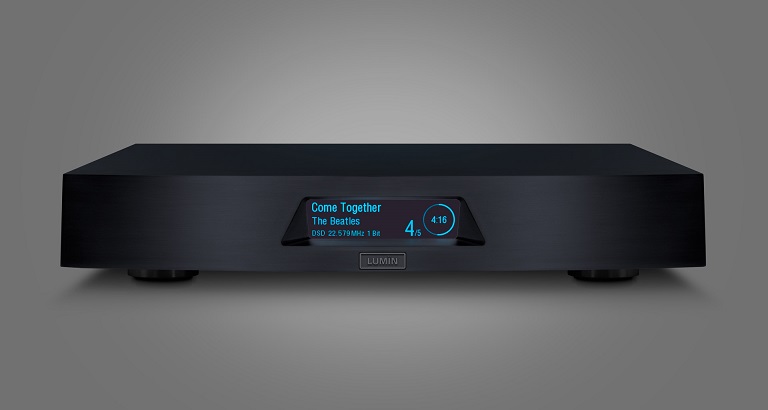

LUMIN X1 makes improvements in every possible location:
New processor delivers native DSD512 & PCM768 playback
Dual Mono design throughout maximises channel separation
Dual ES9038Pro SABRE DACs featuring 140dB dynamic range
Femto Clock System with precision FPGA distribution
New Output Buffer design
Dual Mono dual stage linear regulator
Optical Network provides complete isolation from network digital noise
USB Digital Audio Output supports Native DSD512
Entirely new Power Supply
New solid billet CNC casing design
Separate digital & analogue circuitry
Low-noise linear regulator
New 9-pin output connector
Available as an upgrade for existing S1 / A1 / T1 customers
X1 Specification
DSD Support:
Up to DSD512 22.6MHz, 1-bit
PCM Support:
Up to 768kHz, 16–32-bit, Stereo
Analog Output Stage:
Dual ESS SABRE32 ES9038Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution
Upsampling rates & bit depths:
DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files
Digital Output Stage:
USB:
Native DSD512 support
PCM 44.1–768kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
Optical Network:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
Power Supply:
External solid billet cnc dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
9-pin Output Connector
Physical:
Finish:
Black anodised brushed aluminium
Lumin (solid aluminium chassis):
350mm (W), 345mm (D), 60mm (H), 8kg
PSU (solid aluminium chassis):
106mm (W), 334mm (D), 60mm (H), 4kg
Lumin AMP
Matched styling. Unmatched performance.
160W per channel into 8Ω
320w per channel into 4Ω
2-channel design can be configured in Stereo, Dual Mono or Bridged mode
Class AB Amplification
Discrete Circuit
No global feedback
DC, overload and overheating protection
Bespoke 650VA transformer
LUMIN Amp Specification
Audio Inputs:
Analogue input: 1 x XLR pair, 1 x RCA pair
Input impedance: 200kΩ
Speaker Outputs:
160W per channel into 8Ω
320W per channel into 4Ω
Output impedance: 0.1Ω
Signal to noise ratio: 105dB unweighted
Power Mains Supply
Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz
Volume control:
Volume is controlled by the LUMIN app
Construction:
CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
Finish:
Black anodized brushed aluminium or Raw brushed aluminium
Physical:
Finish:
350mm (W), 374mm (D), 104mm (H), 19kg
Prisen er 129.990,- pr stk.
Sjekk ut Lumins nye hjemmeside: LUMIN - The Audiophile Network Music Player Family
mvh
Tom Egil
tom@endpoint.audio
47832922
