The Headphoneer har testet den fantastiske hodetelefonforsterkeren fra Kinki Studio.
Klikk på bildet for å lese testen
Produktinfo:

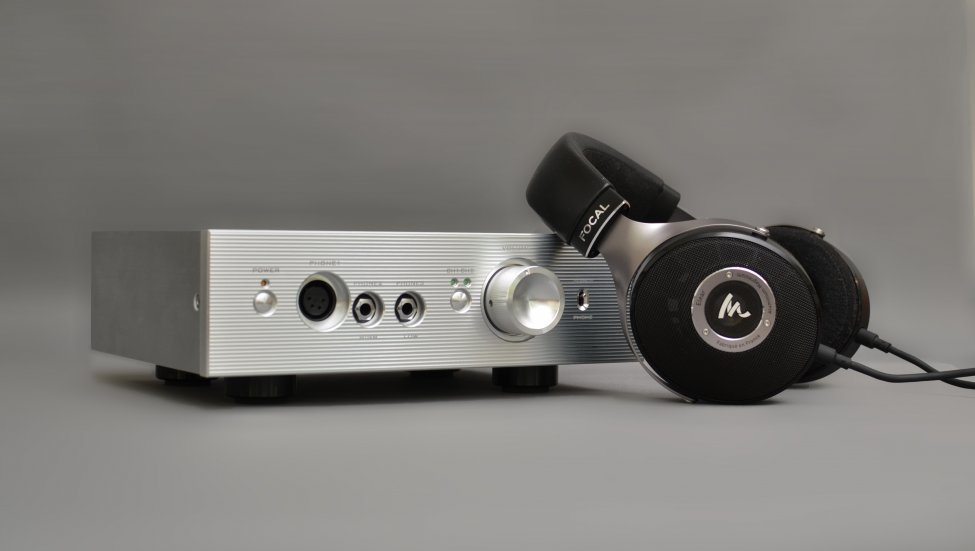

The Vision THR-1 headphone amp is designed to drive any headphone, literally. RMS output power rated at 2.2W 300Ω, 1.3W 600Ω. It comes with tripper headphone output jacks. Two Neutrik 6.3mm single ended jacks cater for low impedance and high impedance headphone, respective. One balanced Neutrik 4-Pin jack for the convenience to use with balanced headphone.
PREMIUM COMPONENTS
UK-Made AMPLIMO transformer, genuine premium parts sourced from legit distributors, i.e. RS-Component/Mouser/DigiKey/Farnel, can be found in the THR-1. Not only does the components guaranteed the longevity of the products, but also guaranteed the sound quality consistency in long run.
SOUND CHARACTERISTIC
Neutral sound reproduction, balance across all frequency with little or no coloration was the characteristic of THR-1. The oversize EXICON MOSFET Output Transistors provide strong control, micro-dynamic, micro-contrast and excellent drives. This is especially so even on the hard-to-drive AKG K1000, THR-1 handles the music reproduction with K1000 exceptionally well.
NEED A PREAMP?
No problem. The THR-1 can be doubled up as Pre-amp by a toggle switch located right beside the volume pot. In Preamp mode, the headphone output is bypassed, the volume of the Preamp output can be controlled by the volume pot as a passive preamp.
Parameters
Frequency response: 20-300kHz (±1dB)
THDN: 0.0014% (80dB) S/N Ratio: >98dB
Dynamic Range: >115dB Input
Input Sensitivity: 2.25Vrms - 3.6Vrms
Input Impedance: 50Ω
Input Connector: RCA x 1, XLR x 1
Headphone Output Output Voltage: ±70VAC
Output Connector: 6.3mm x 2, XLR 4Pin x 1
Preamp Output Output Voltage: 2.25Vrms - 3.6Vrms
Output Connector: XLR x 1
Dimension & Weight Dimension: 270W x 100H x 210D
Weight: 6KG
Pris: 10900 NOK.
mvh
Moiz Audio
epost: info@moiz.no
