EMT er riktignok et firma som har rundet 85 år, men er på ingen måte utdatert og gammeldags. Under de siste årene har Micha Huber sørget for å modernisere og finpusse kunnskapen som er etablert gjennom alle disse årene og sist ut nå er et par gledelige overraskelser som vi ser veldig frem til å få i hus.
1. New EMT tonearm technology
The legendary EMT tonearms 929 and 997 (Banana) have been manufactured for decades
and remained unchanged until the production was discontinued in 2018. Since then, the EMT
team has been working on the design of a tonearm series with advanced technology, and we
are glad to introduce this amazing product to the public in 2022.

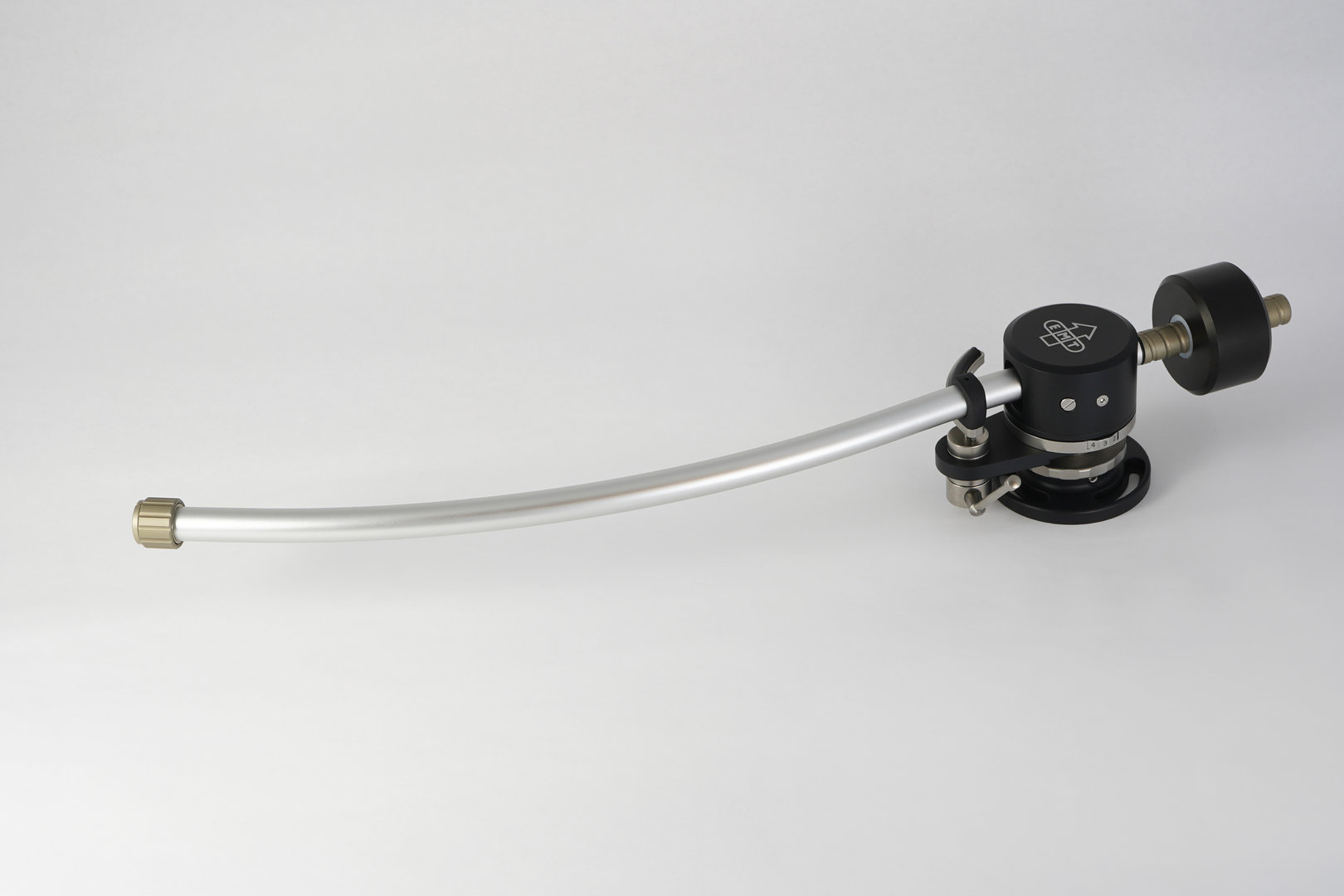

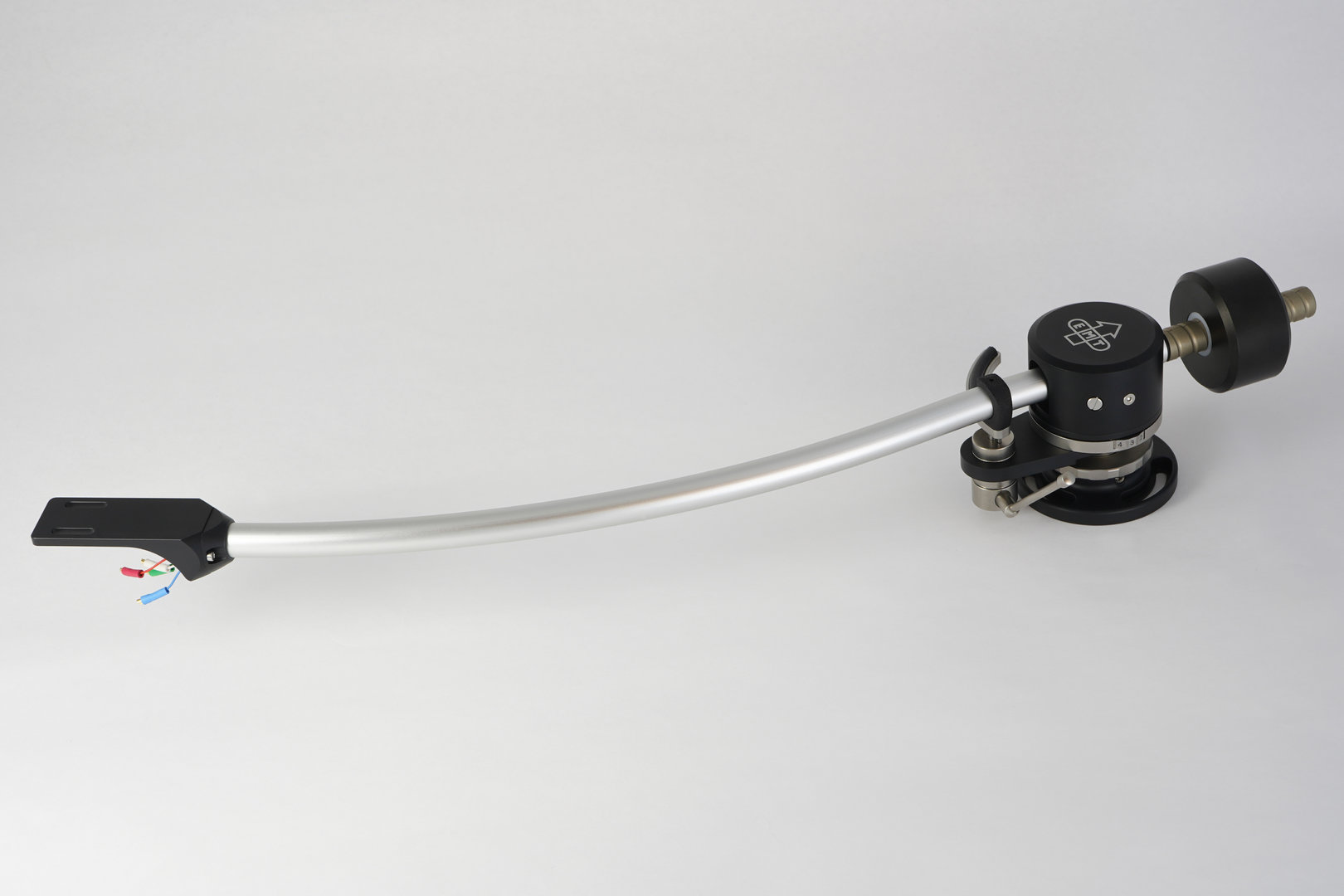

EMT 912 og EMT 912HI
We are particularly proud on the fact that we were able to combine most modern bearing- and
manufacturing-technology with the traditional EMT design. Thus, the sound properties are improved
significantly, while at the same time the long history of this product-line is respected.

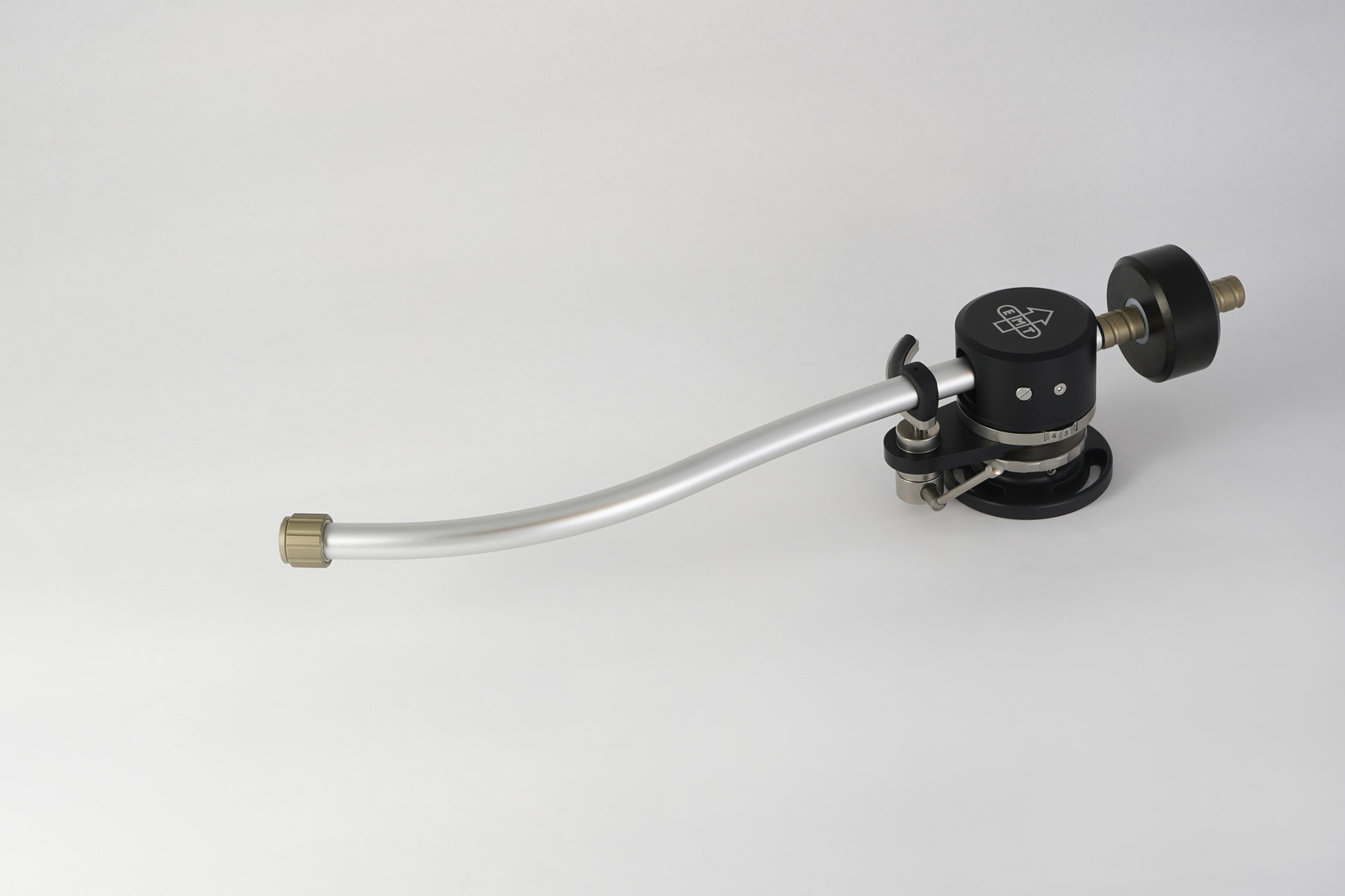

EMT 909 og 909HI

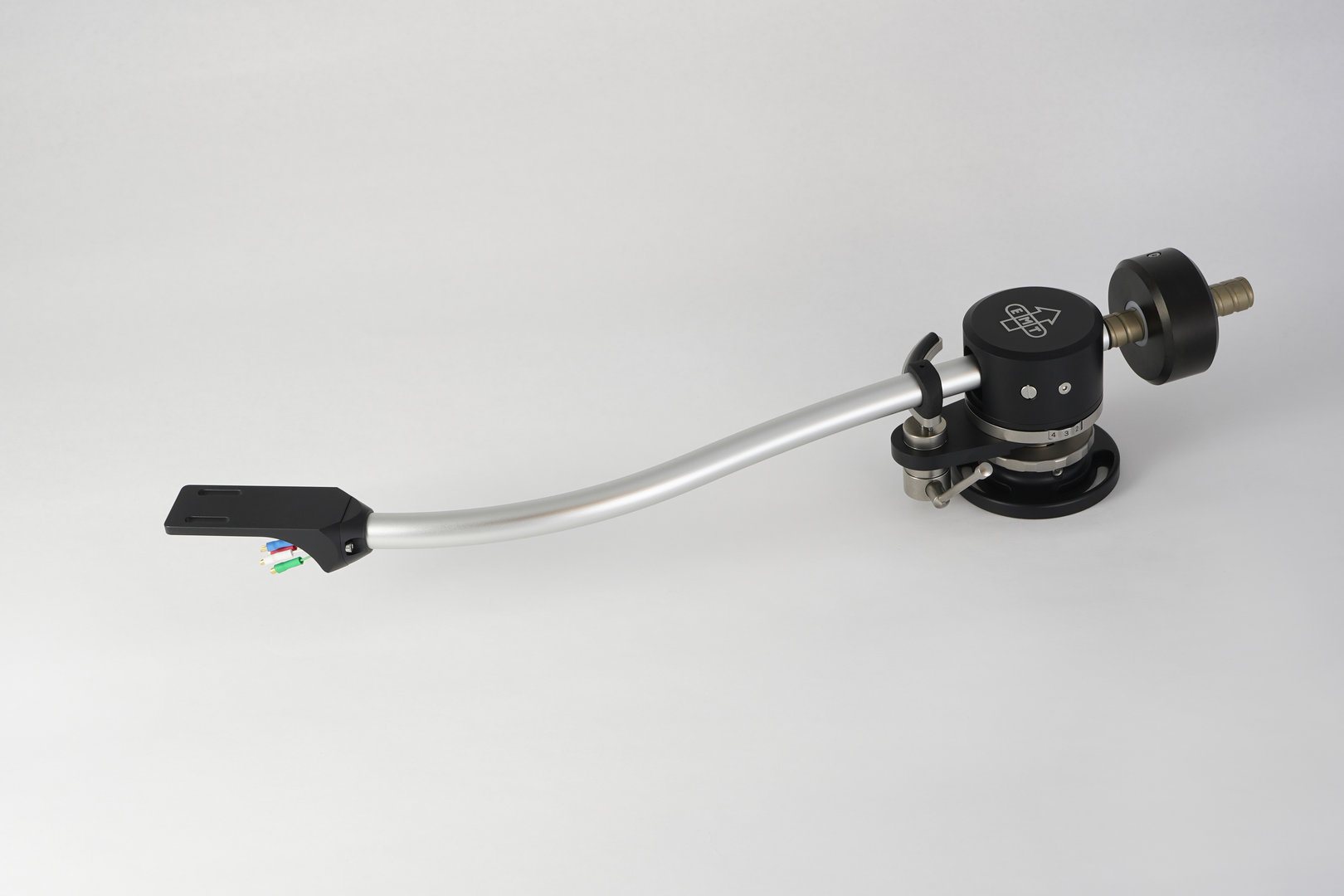

The new tonearms are available as 9 inch and 12 inch version. They come either with fixed
headshell (HI version) or with EMT connection for the Tondose.

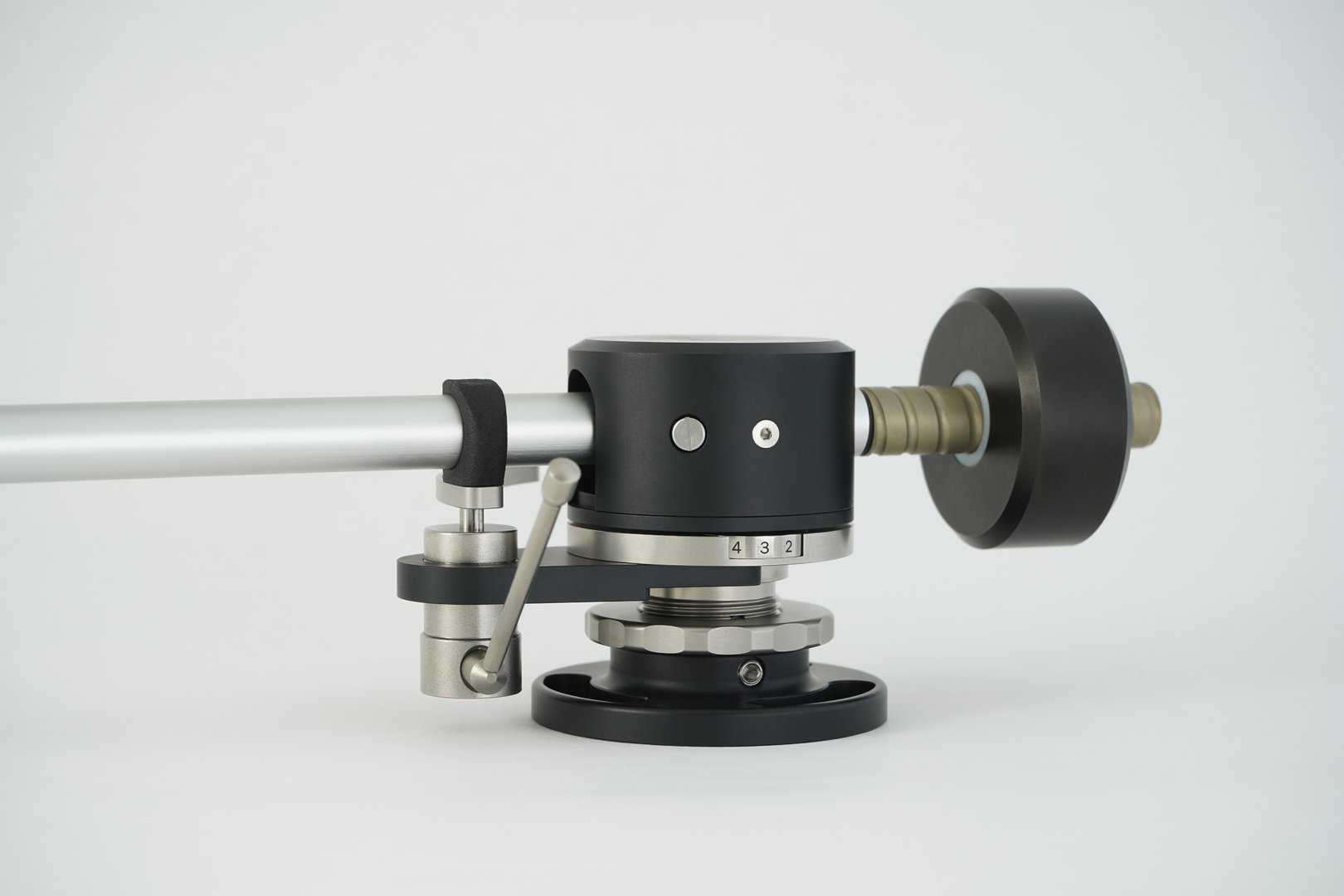

All tonearm models feature a magnetic antiskating device and a ring for VTA adjustment.
A tonearm-lift is included with the product and can be removed if the tonearm is used on old EMT turntables with built-in lifting device.
The tracking geometry was optimized according to the latest knowledge, but all mounting properties remain unchanged.

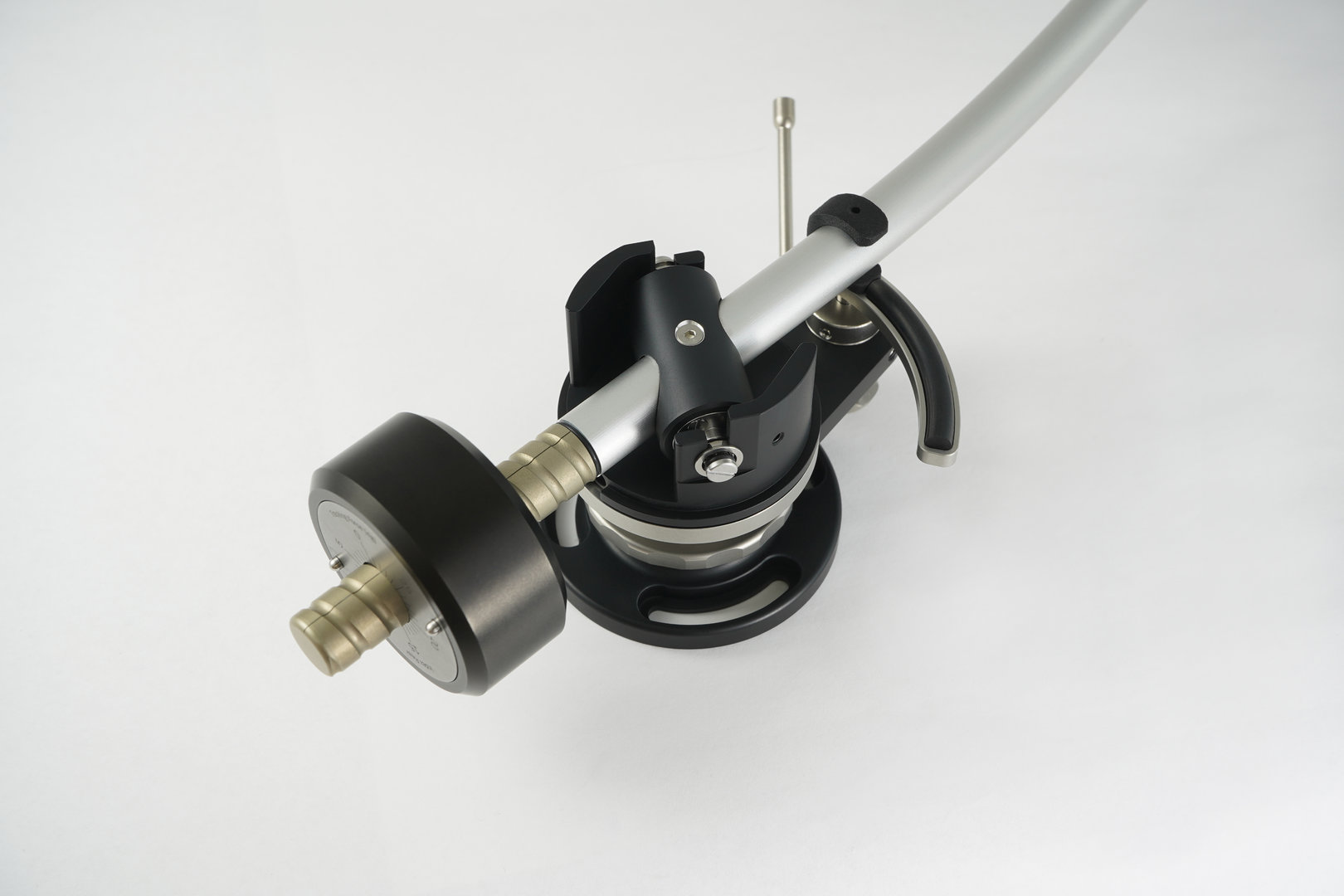

For both, horizontal and vertical bearing axis, the EMT tonearms feature a unique ball-bearing technology.
The highly integrated and rigid mechanism is made of hardened and polished steel parts, combined with customized
rubber components. This reliable EMT technology compensates for any geometric deviation along the bearing axis, caused by
positional tolerance, tightening torque and environmental influences such as temperature and humidity.
Therefore, the bearings remain free of tension and run with lowest friction values during their entire life cycle.

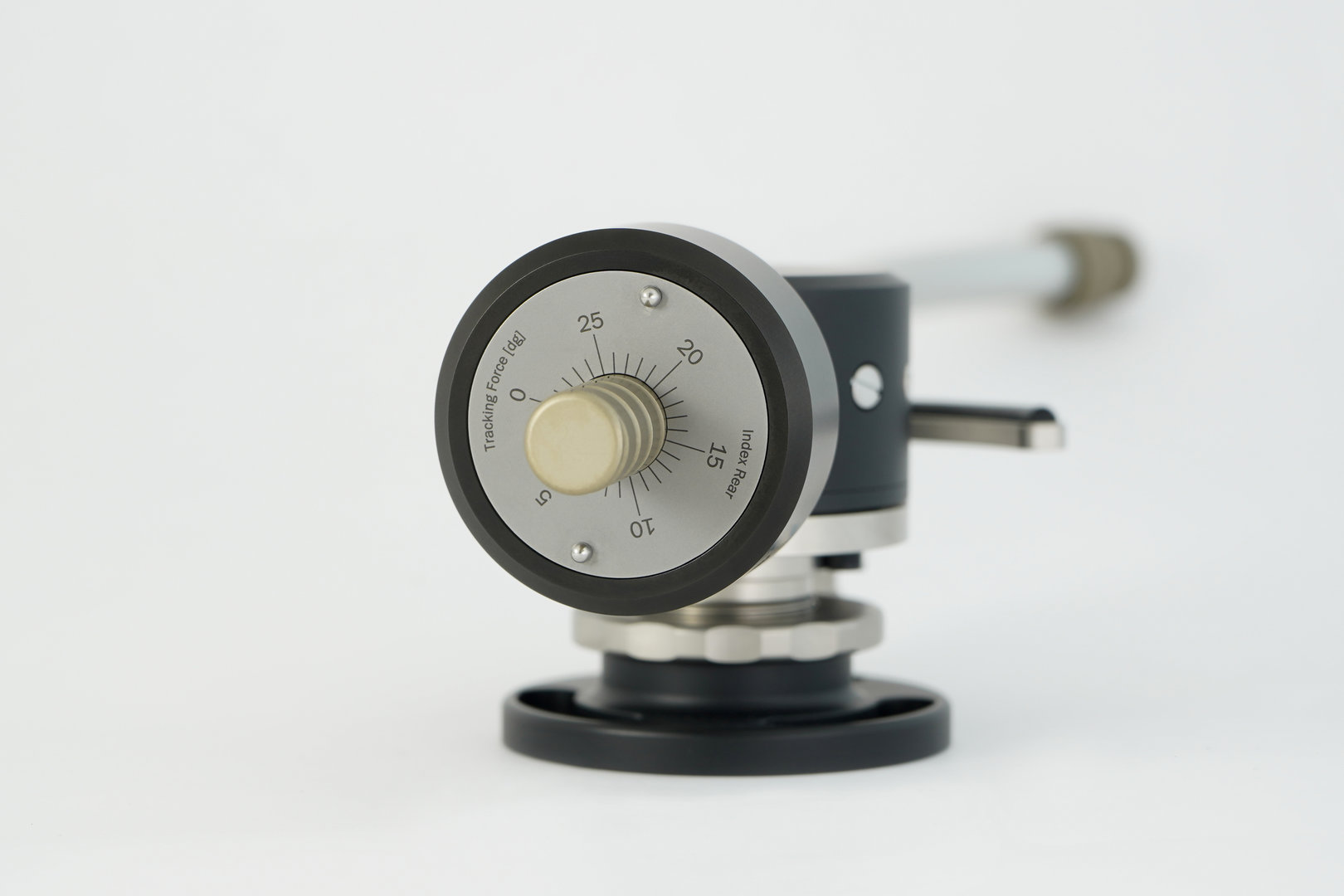

The counterweight is connected to the armtube by two decoupling PTFE bushings. It features a spring-loaded mechanism to allow
backlash-free positioning along the adjustment range. An engraved scale can be turned to zero position when the tonearm is in neutral
balance. This allows precise setting of the vertical tracking force, even if you don’t have a tonearm scale at hand.

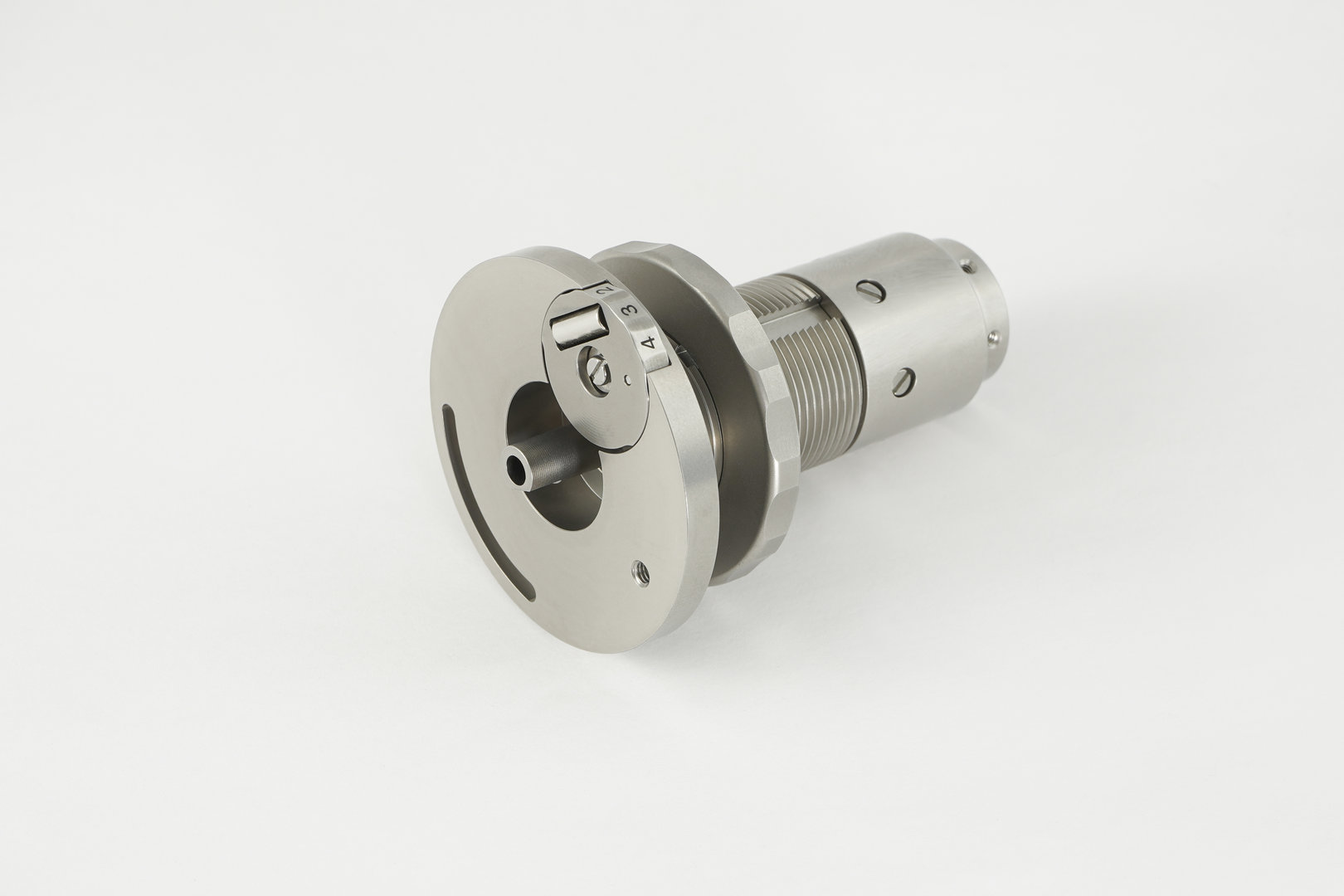

Each EMT tonearm consist of 150 individual parts. All structure parts are machined from solid material in highest precision.
We use stainless steel for the base-parts and aluminium-alloy for all movable parts. A specific alloy called “German silver” is used for all parts
that are exposed to mechanical abrasion, such as the rear shaft or the connection for the Tondose.

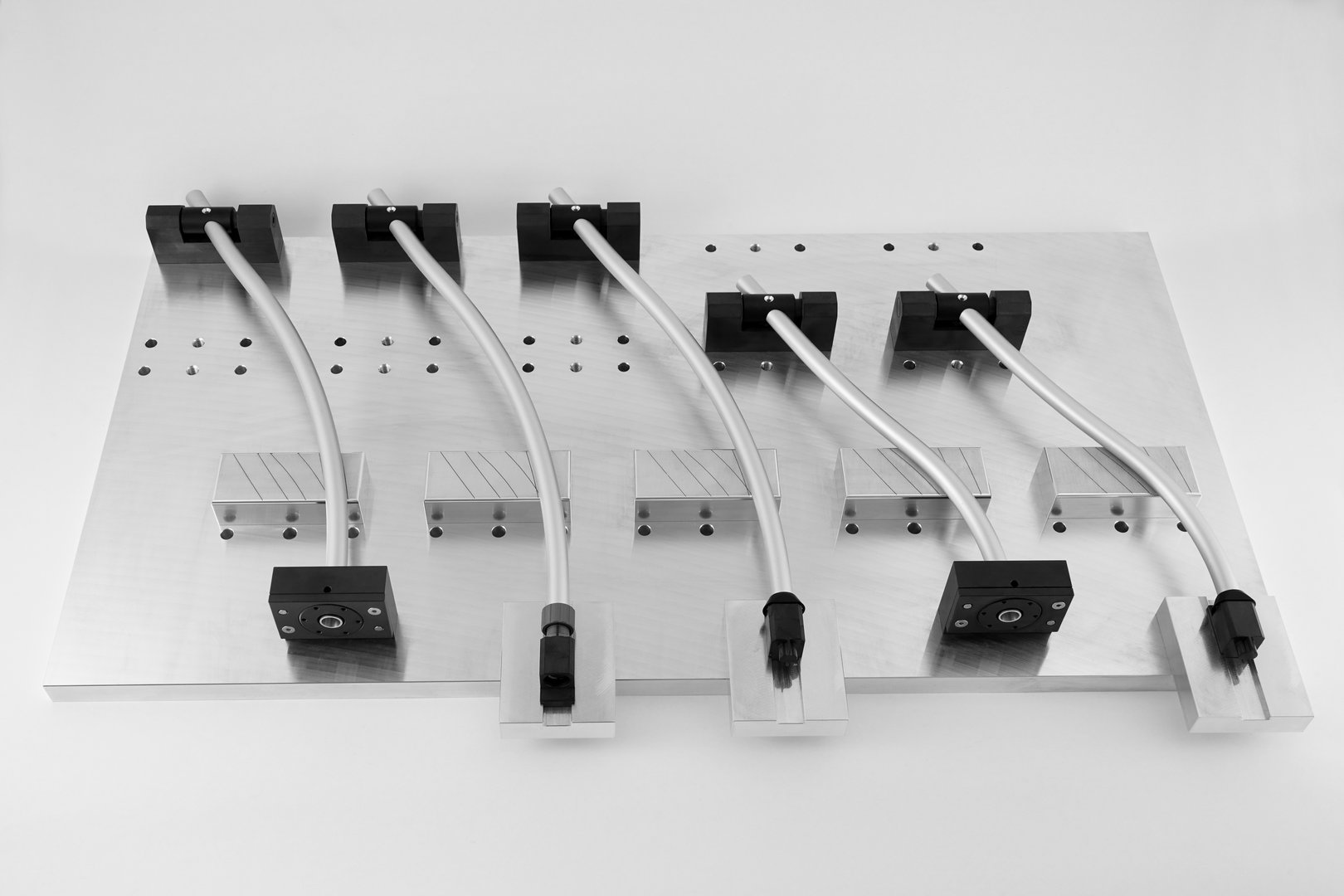

We have invested into elaborate tooling to lift the preciseness of machining and assembling the arm-tube-components to a new level.
So, without false modesty, we can claim to offer the most precise tonearms with curved arm-tubes available on the world market.
Prisene på de forskjellige tonearmene er:
EMT 912HI med 5 pins DIN - 83990,-
EMT 909HI med 5 pins DIN - 69990,-
EMT 912 for EMT eller Ortofon o.l (valgfritt) med 5 pins DIN - 63990,-
EMT 909 for EMT eller Ortofon o.l (valgfritt) med 5 pins DIN - 54990,-
mvh
Tom Egil
tomegil@endpointaudio.no
47832922
