    Lykkelig eier av en snaisen liten nettversksstreamer (sMS-200), men ser at her mangler det en vennetråd.

    SOtM er et sør-koreansk selskap og nettsiden SOtM - Ultimate High Performance Audio ble opprettet juni 2008. I følge 6moons så var dette også da selskapet ble grunnlagt av Il-Won Lee (이일원). Moiz forhandler produktene her på berget.

    Produktene består i all hovedsak av musikkserver, nettverskspiller, dac, strømforsyning, og diverse pc-kort.

    Disse deles inn i to segmenter/prisklasser:

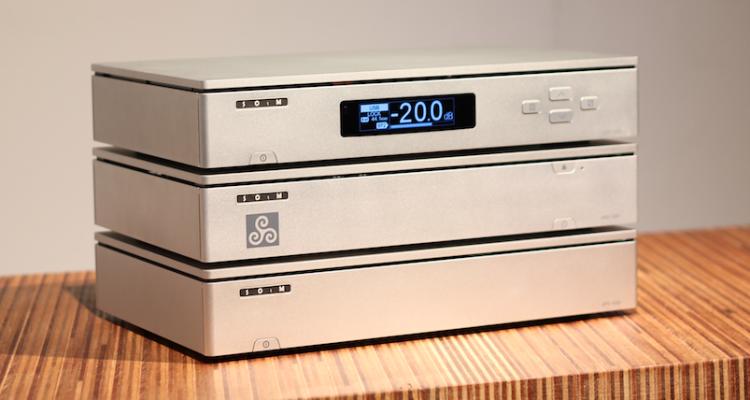

    Ultimate

    Ultimate – SOtM – English



    • sMS-1000SQ WE - Windows basert musikkspiller
    • sDP-1000EX - high-end D/A converter and pre-amplifier.
    • sPA-1000 - Class-D amplifier
    • sPS-1000 - high performance DC linear power supply

    Advanced



    Advanced – SOtM – English

    • sMS-200 - mini network player
    • sHP-100 - USB DAC & high performance headphone amplifier.
    • dX-USB HD - high performance DDC
    • mBPS-d2s - intelligent battery power supply

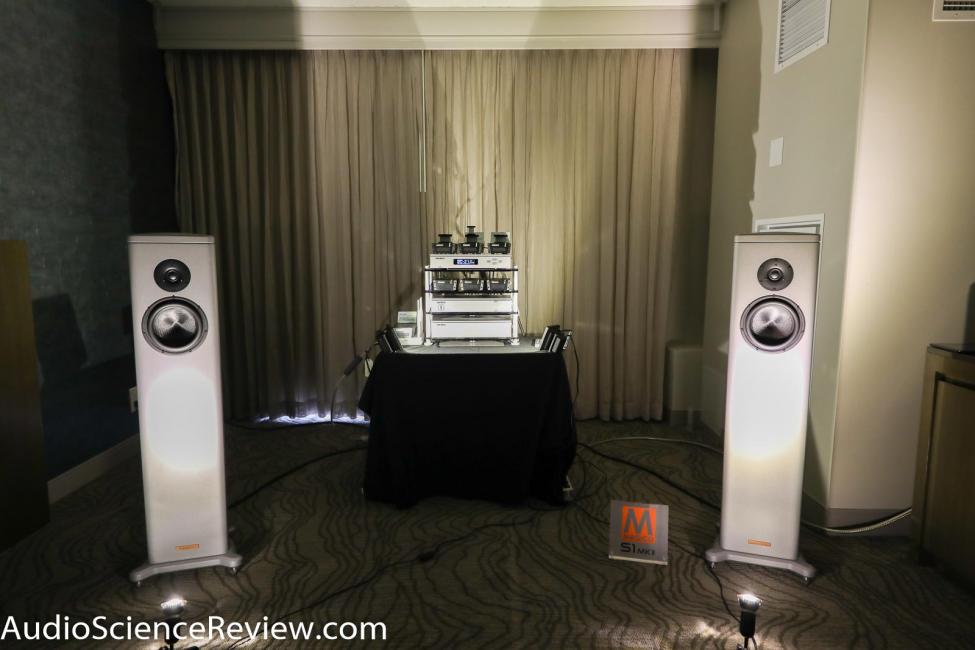

    Har vært på Horten-messa i 2012. Her noen bilder fra mitt kamera:


    Moiz Audio by Morten Teinum, on Flickr


    Moiz Audio by Morten Teinum, on Flickr


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    sMS-1000SQ Eunhasu

    Ny hardware!

    Denne gangen fra Ultimate linjen:



    SOtM announces “sMS-1000SQ Eunhasu” is now available.
    - Eunhasu music player platform is now loaded on sMS-1000SQ.-
    SOtM has been released sMS-1000SQ series products, satisfying all the demand of sound quality, functionalities and technical requirements which are worthy of its own value of money.
    In this time, SOtM introduces the sMS-1000SQ Eunhasu, which is capable of following features by Eunhasu music player platform.

    - Easy system configuration
    - Selectable music player applications
    - Selectable and configurable USB audio devices
    - Network share folder and USB storage device setting
    - Roon Ready
    - Roon Server
    - MinimServer
    - DLNA audio renderer, OpenHome support
    - MPD(Music Player Daemon)
    - LMS(Logitech Media Server)
    - Squeezelite
    - HQPlayer Network Audio Adapter
    - Shairport
    - Multi-zone network playback
    sMS-1000SQ Eunhasu is a state-of-art music server and player equipped with the best technology capable of convenient use and budget. The sMS-1000SQ Eunhasu can offer the extremely satisfying sound quality no matter what sort of systems are to be configured.
    The price of sMS-1000SQ Eunhasu starts from US$3000 and is available with various features and options allowing the customers freely choose what they want per own favorite sound taste and system. Yet, the sMS-1000Q is providing high quality of sound with the basic default features, also can easily enhance sound quality by simple trick such as using a separate external power supply to the USB audio port.
    - Color : Silver or Black
    - Output : USB output, Digital output, Analog output
    - Storage Capacity : 64G SSD for standard feature, Max.4TB HDD or max.2TB SSD for extra storage.
    - Clock : sCLK-48.0 for USB output or sCLK-2224 for Digital or Analog output
    sMS-1000SQ Eunhasu – SOtM – English


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    Update news about sMS-200 Wi Fi

    Greetings,

    Finally we are able to update the news about WiFi support for sMS-200, thank you for your patient. We are still working on few more steps to be done and it will be ready shorty.

    Here we would like to inform you in advance that the WiFi feature will be slower than wired one and the Wifi dongle which uses RTL8812AU chipset should be used for sMS-200 WiFi support.

    We will keep you posted about sMS-200 Wifi support shortly.


    Update news about sMS-200 Wi Fi – SOtM – English

    ---

    Regner med at dette blir et kretskort som monteres i sMS-200.


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    Ny firmware for sMS-200 kom 28.12.16

    Version : V0.3.0
    - Date : 28-12-2016
    - Fix not change background image bug
    - Fix raat_watch daemon bug
    - Fix broken icon for openhome
    - Fix volume issue for MPD
    - Add EFI mount disable only for sMS-200
    - Add wifi connection feature
    - Add RTL8812AU driver
    - Update kernel to 4.4.14
    - Modify UI
    Oppgradering er veldig enkelt å greit:

    1. System upgrade

    Screen Shot 2017-01-03 at 17.05.56.jpg

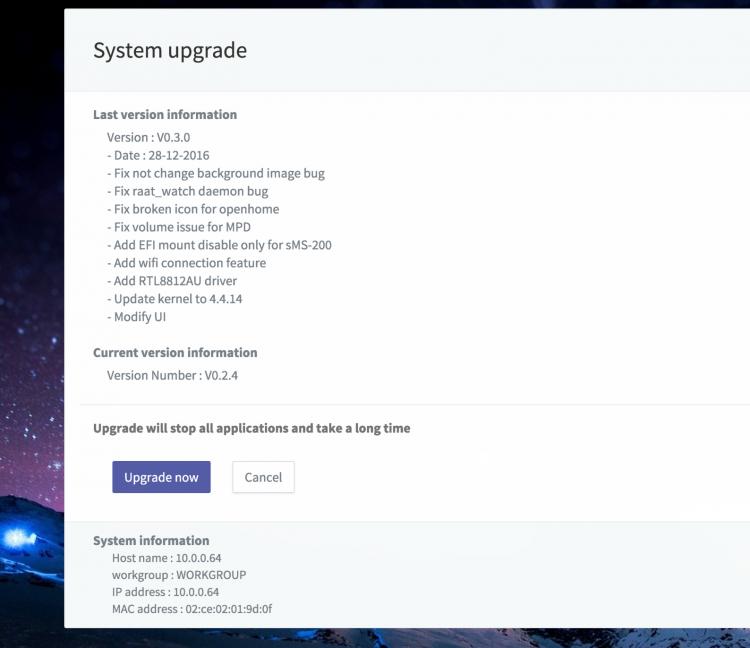

    2. Upgrade Now

    Screen Shot 2017-01-03 at 17.06.08.jpg


    3. Reboot

    Screen Shot 2017-01-03 at 17.31.27.png


    Og etter dette så har det kommet nye menyvalg under Network config, bla. wifi

    Screen Shot 2017-01-03 at 17.34.26.jpg


    Mangler wifi-modulen i min enhet, så denne kan ikke koble til det trådløse nettet enda.


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    Eunhasu_ Native DSD support

    Siste nytt :)

    Greetings,

    SOtM announces that Eunhasu supports native DSD with certain audio function: RoonReady, Squeezelite, MPD/DLNA and HQ player NAA, from F/W version 3.2.

    And the native DSD support on Eunhasu is available with certain DACs. If your DAC is not listed below, you can continue to play DSD via DoP. If you think we may miss to update your DAC on the list below, please contact us to check whether your DAC is supporting native DSD with sMS-200. we will proceed some test with you and try to update your DAC on the list.


    Audiolab M-DAC+

    Aune X1S 32BIT/384 DSD DAC

    AURALiC VEGA

    Bryston BDA3

    CH Precision C1 DAC

    DIYINHK DSD DXD 384kHz USB to I2S/DSD

    Eastern El. MiniMax Tube DAC Supreme

    Engineered Electronics Stereo Playback Interface

    Gustard DAC-X20U

    Holo Springs Level 3 R2R DAC

    iFi Audio micro/nano iDSD

    JLsounds I2SoverUSB

    LH Labs Geek Out 1V5

    LH Labs Geek Pulse X Inifinity 2V0

    LH Labs VI DAC Infinity

    Matrix Audio Mini-i Pro

    Matrix Audio Quattro II

    Matrix Audio X-Sabre

    MSB Technology

    Mytek Brooklyn DAC

    NuPrime Audio DAC-9

    NuPrime Audio HD-AVP/AVA

    NuPrime DAC-10

    NuPrime IDA-8

    OPPO HA-1

    OPPO HA-2

    Playback Design

    PS Audio NuWave DAC

    Singxer F-1 converter board

    Soekris dac1101

    Unison Research Unico CD Due

    WaveIO USB Audio 2.0

    Wyred 4 Sound DAC-2 DSD

    Also currently, we are modifying the Eunhasu manual, nd it’s almost ready. Once it’s available, we will put the manual in the sMS-200 and sMS-1000SQ product page to download or see.


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    Da har jeg oppgradert min sMS-200.

    Under Roon-oppsettet kan man velge hvilken DSD modus denne skal bruke. Velger Native og lagrer.

    Screen Shot 2017-01-25 at 15.31.14.jpg


    Og slik ser Roon ut. Gjorde ingen endringer i oppsettet på denne siden.

    Screen Shot 2017-01-25 at 15.33.25.jpg


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1

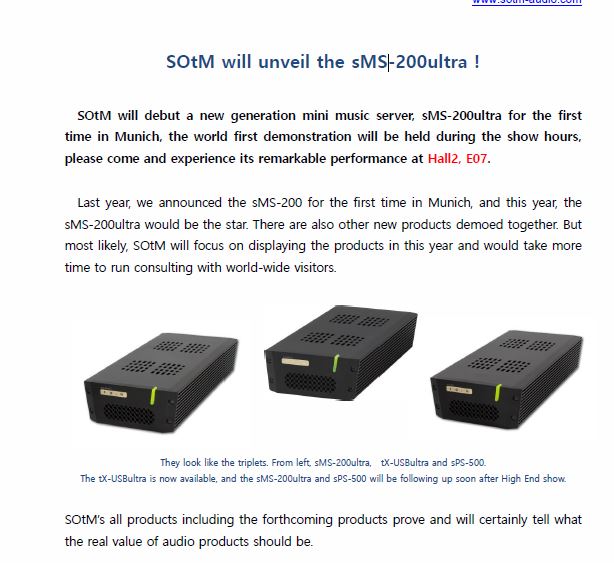

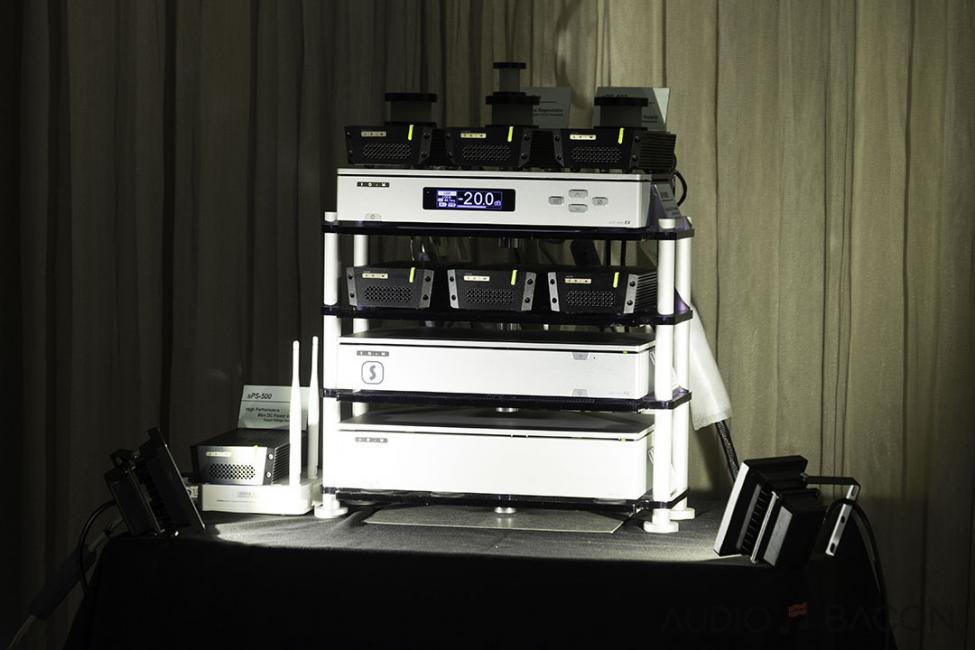

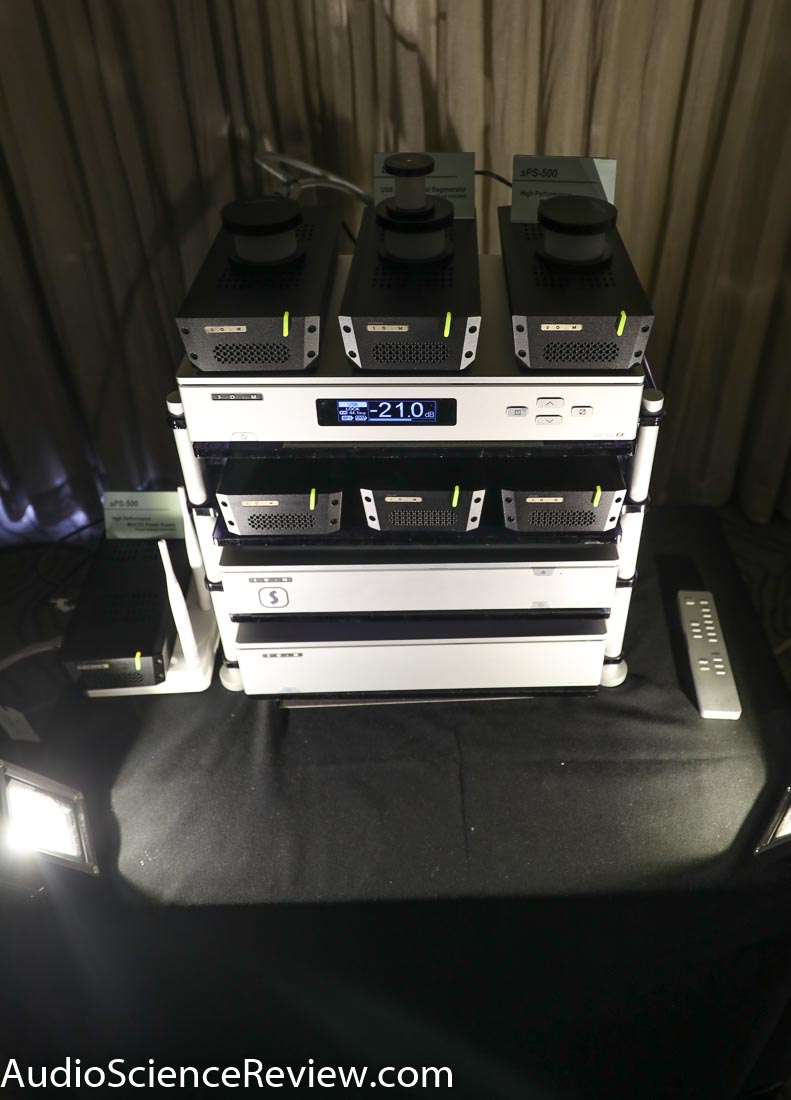

    Mye spennende som kommer på High End -messen i Munchen

    For the show, SOtM planned to bring the numerous new products such as sMS-200Ultra, sPS-500, mT-1000, sPA-1000 and the dCBL-U10, etc, every SOtM products will be static displaying and demoed during the show.
    https://www.sotm-audio.com/sotmwp/english/plan-for-2017-high-end/

    sMS-200 Ultra er en forfinet utgave av dagens sMS-200 med oppgradert klokke

    I also currently own the SOtM sMS-200 Ultra, which should be formally released sometime next month at a price point of about $1,300. At least in my system, this Ultra is in a class of its own and easily surpasses the 3 that you have on your list. The only thing that sets it apart from the standard sMS-200 is a better clock, however, this clock makes a pretty significant difference.
    https://www.computeraudiophile.com/forums/topic/31498-which-endpoint-for-roon/#comment-652008


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    02.06.17:

    https://www.sotm-audio.com/sotmwp/english/press-release-sms-200ultra/

    Her er det mulighet for oppgradering av eksisterende enheter

    Greetings,
    We proudly announce that sMS-200ultra will be finally available in the next week and we sincerely apology for the long waiting.

    The first shipping would be available on 9th, June but we are trying to make the shipment available earlier.

    Please check more information about sMS-200ultra on our website, click here.

    sMS-200ultra – SOtM – English

    And many world users whom own the sMS-200 have been waiting for and requested to hear about the upgrade path of their current sMS-200 to be upgraded to the sMS-200ultra, and here we prepared the special upgrade path.

    Please read the details of how to join, and shoot an email to go to the next step properly. But, please remember that your local partner or the shop you bought would help you to arrange this upgrade path much easily.

    Subject :

    The upgrade path to be the sMS-200ultra for whom owns the sMS-200

    Period :

    A month. Starting from 7th, June to 7th, July.

    For whom :

    current sMS-200 users

    Benefit :

    1. Purchase the sMS-200ulta at the very special price, US$900
    2. The sMS-200ultra includes the master clock connector for free.

    Condition :
    1. The sMS-200 should be returned to us in Korea.
    The sMS-200 with the serial number should be provided and sent to your local partner or the shop you bought or us directly. We and our partner would take your sMS-200 to be upgraded to the sMS-200ultra in the list and waiting for it to be returned to Korea for the upgrade. The shipping and handling cost should be paid by you or our local partner or the shop.
    2. Take 3 business working days and a round trip shipping period.
    The upgrade would be made with your sMS-200, so the round trip shipping time plus 3 business working days for the upgrade should be required to complete the upgrade to the sMS-200ultra.

    3. Take the big advantages.
    SOtM offers more than USD300 discount for this upgrade path and all this upgrade unit would have the master clock connectors included. But if your current sMS-200 condition is not good, SOtM would not be responsible of any service or faulty. (Depending on the situation, the repair cost would be charged additionally.) And, SOtM wouldn’t be responsible to any accident during the shipment.

    To proceed the upgrade path, please contact your local dealer or email us to get more information.


    deleted

    Hi-Fi entusiast
    Ble medlem
    06.01.2011
    Innlegg
    118
    Antall liker
    73
    Fikk sMS-200ultra og sPS-500 i hus i dag. Denne komboen tar over for en Bluesound Node 2. Har bare fått et par timer spilletid foreløpig, men det låter meget bra allerede. Må få testet enda litt mer på kjent musikk, men har trua på at dette blir bra. :)


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    Penger ut, boks inn.

    Speed unboxing





    Ny eske samt pose



    Posen inneholder en splitter



    Reklame, strømkabel, manual



    PSU



    Kabelkaos. Den enkle følger med sPS-500; dobbel ekstra.



    Forsiden på sMS200 ultra, tX-USBultra og sPS-500 er svært like, baksiden naturligvis ei.



    Familiebilde



    Og her med strøm tilkoblet



    Med Tidal HiFi/Roon/SOtM/Mytek begynner jeg å stille meg spørsmål ved om det er noe poeng med platespiller i det hele tatt... neida, den ryker ikke ut, men jeg ser jo hva som blir prioritert.


    deleted

    Hi-Fi entusiast
    Ble medlem
    06.01.2011
    Innlegg
    118
    Antall liker
    73
    Hvilken spenning har du satt sPS-500 på? Jeg har min på 9V, og det ser ut til å funke bra.


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    12V (trinn nr. 3). NB! Bildet viser trinn nr.1; 7V, dette ble tatt før jeg satt denne til 12V.

    Screen Shot 2017-12-05 at 23.01.55.jpg


    Både sMS200-ultra og tX-USBultra er 12V utgaver (dvs. mine er)

    Har man planer om Advanced II serien til SOtM så kan det være lurt å huske på at komponentene kommer i flere varianter ref. spenning.

    tX-USBultra

    Input voltage : 9Vdc (Optional 12Vdc or Optional 6.5Vdc ~ 8.5Vdc)

    tX-USBultra – SOtM – English

    sMS-200ultra

    Input voltage : 9Vdc (Optional 12Vdc or Optional 6.5Vdc ~ 8.5Vdc)

    sMS-200ultra – SOtM – English

    sMS-200

    Denne har variabel input

    Input Voltage : +6.5 ~ 12Vdc

    sMS-200 – SOtM – English

    sCLK-OCX10

    Input voltage : 12Vdc

    http://www.sotm-audio.com/sotmwp/english/portfolio-item/sclk-ocx10/


    deleted

    Hi-Fi entusiast
    Ble medlem
    06.01.2011
    Innlegg
    118
    Antall liker
    73
    Måtte dobbelsjekke min 200ultra. Har standardutgaven, så da er jeg på rett innstilling.


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    Omtale av sMS-200ultra/sPS-500 i 6moons



    6moons audioreviews: SOtM sMS-200ultra

    Software [...] and Roon Ready Endpoint. The latter is promoted with a 60-day comp trial code. Because I have long since tagged my iTunes library just so; and because I don't stream subscription services in the big system, just on the desktop - I didn't wish to install then uninstall Roon.
    "Å-nei" var første tanke. Dette burde være hovedgrunnen til å ta i bruk en nettverksstreamer. Separasjon av PC og Hi-fi. Roon er den beste softwaren jeg har kommet over innen digital avspilling av lokalt innhold samt streaming (Tidal). LMS var et hyggelig minne, men jeg kommer aldri til å gå tilbake til denne.


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1
    Det ble en lang arbeidsdag :)

    Da var man hjemkommet og oppdatert litt mykvare.

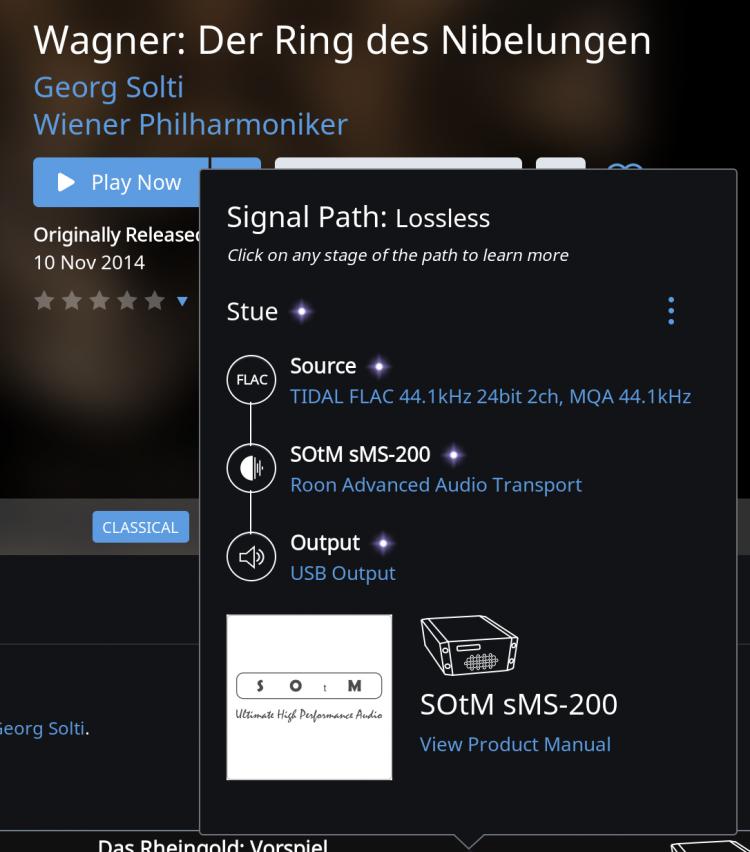

    Dette mener jeg er nytt siden 1.3 - det at man kan se at det er en MQA stream som er kilden ved avspilling. Ref. https://www.flickr.com/photos/mortenteinum/31770930900/in/dateposted/

    Screen Shot 2017-12-19 at 20.23.51.jpg


    Denne var faktisk litt fiffig

    Screen Shot 2017-12-19 at 20.28.03.jpg


    Koble til en https://mytekdigital.com/clef/ som har MQA støtte så burde det være mulig å få portabel godlyd i huset.

    Well, this has been a long time coming. Starting today, Roon supports playback to iOS devices!

    iOS devices will now automatically exposes a private zone that acts like a System Output in some ways. However, iOS’s infrastructure is careful enough that when only one app is playing, the output is bit-perfect. Thus, external DACs, 24bit output, MQA, and DSD are all possible. Signal path will reflect playback quality accurately, and will also display the output path (headphones, speakers, bluetooth, usb, hdmi, …).


    deleted

    Hi-Fi entusiast
    Ble medlem
    06.01.2011
    Innlegg
    118
    Antall liker
    73
    Mener å huske at det var mulig å se MQA stream i signalveien på 1.3 også.


    mteinum

    Hi-Fi freak
    Ble medlem
    29.05.2007
    Innlegg
    9.567
    Antall liker
    2.681
    Sted
    Øya
    Torget vurderinger
    1

    Lars™

    Overivrig entusiast
    Ble medlem
    03.10.2004
    Innlegg
    613
    Antall liker
    377
    Sted
    Trondheim
    Torget vurderinger
    4
    OK, verden går videre selv om Logitech Transporter er den tøffeste med VU-meter og ku-fanger ;)
    Må vel gjøre endringer ser jeg....
