Tandberg TCD 330

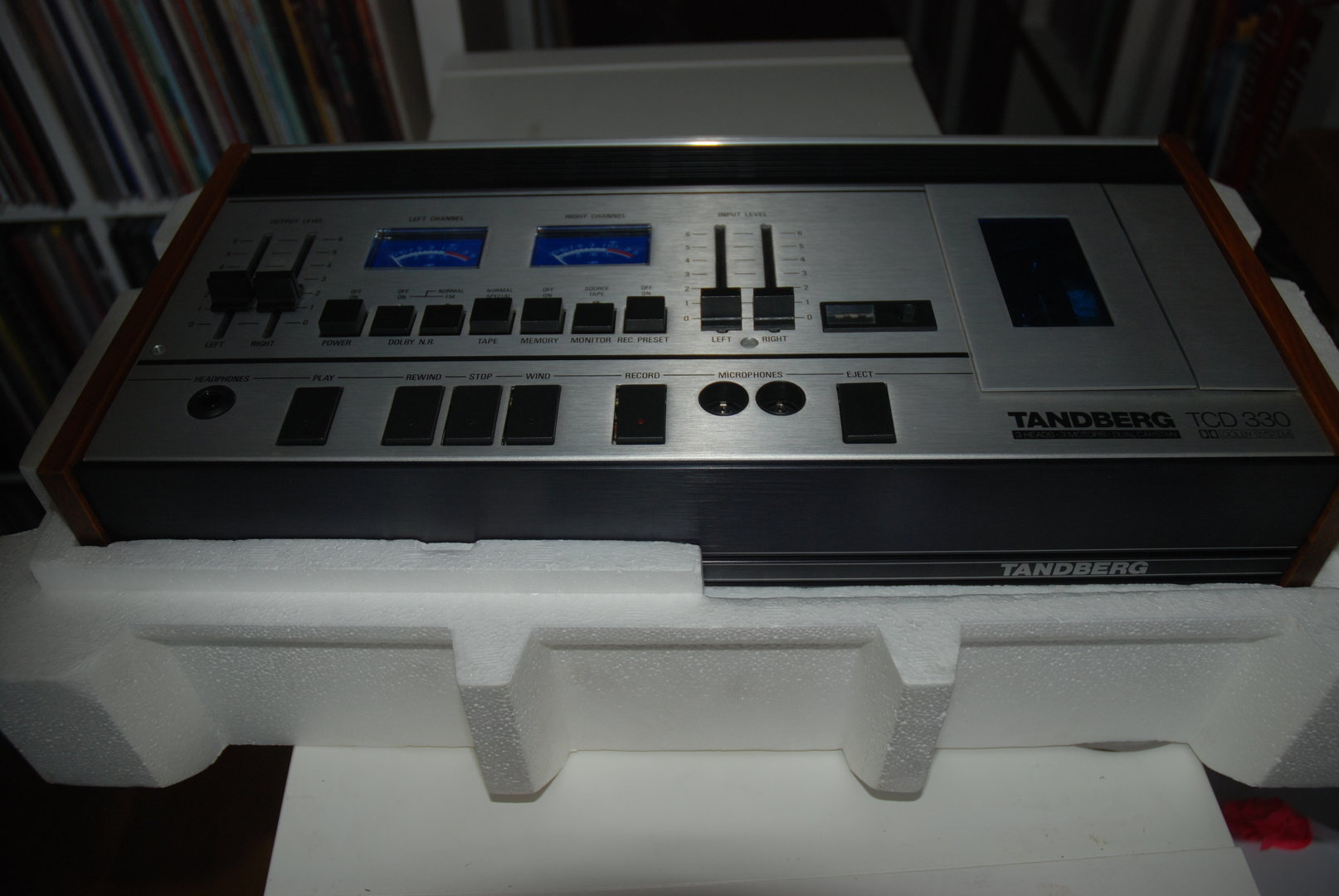

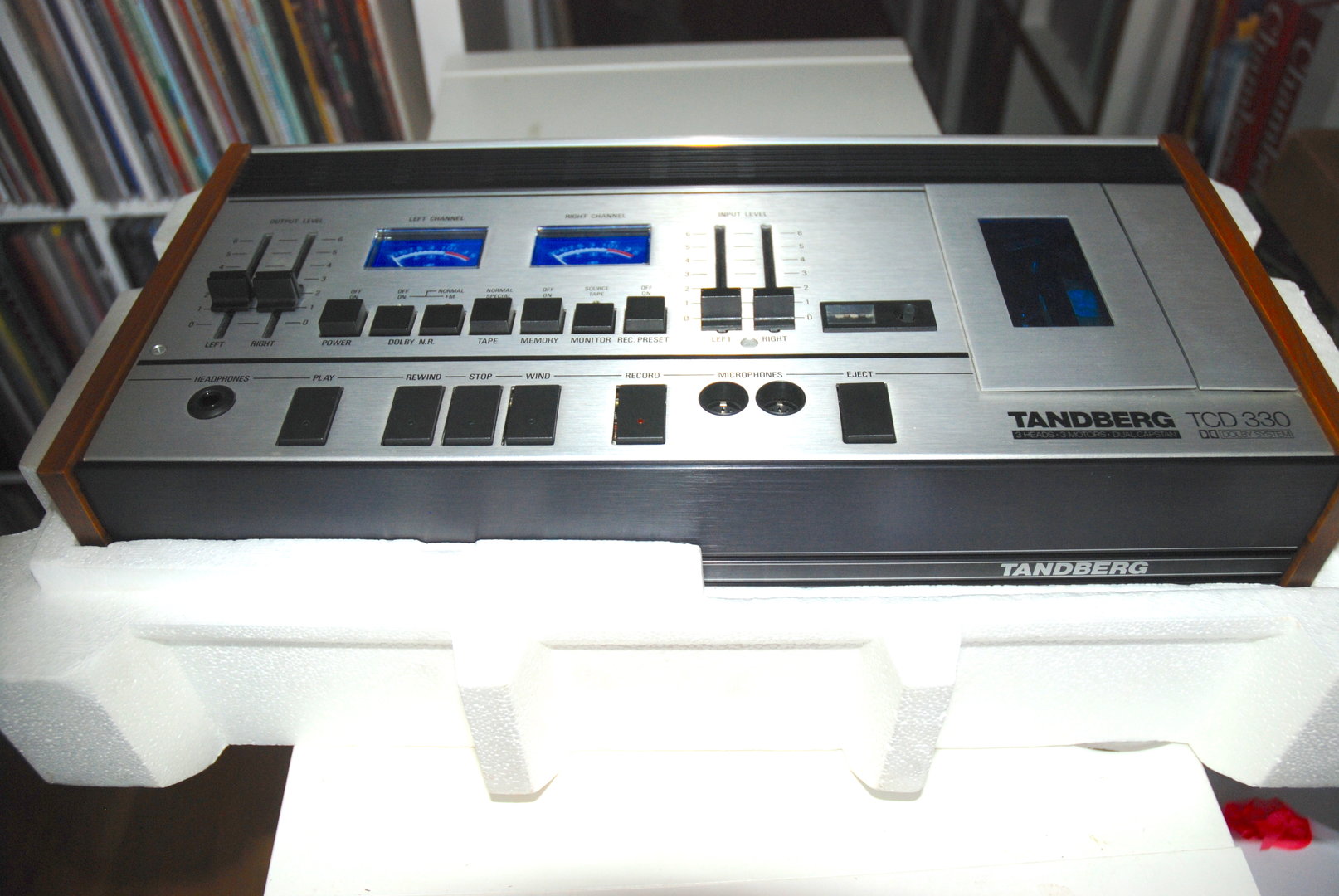

Well know to all Norwegian audiophiles, this is a UK supplied unit in pristine condition with original box manuals and stands. The TCD330 is the top model in the Tandberg range of cassette tape recorders and in many ways compares favourably with open reel machines
The main features of the Tandberg TCD 330 are: 3 heads and off-tape monitoring, mechanical 3 digit tape counter and memory stop, manual tape type selection and capable of handling normal and chrome tapes, belt driven dual-capstan transport.
Typical front loading cassette deck with the cassette compartiment located on the right side of the deck. Tape eject is operated mechanically and the cassette needs to be placed sideways in the cassette well.
Level meters used on the TCD 330 are analog needle VU reading meters. Full-logic transport controls used on the TCD 330 let it respond to the slightest finger contact for fast and effortless transport function selection.
This a Private Sale, there is no return, no guarantee and no exchange. The goods are sold under exclusion of any warranty. Shipping must be organized by buyer.
Specifications:
Tape Speed: 1-7/8 i.p.s.
Speed Tolerance: ±05%
Wow and Flutter: 0,18% (peak DIN 45 511); 0,12% (WRMS)
Frequency Response (DIN 45 500): 20 - 20,000 Hz (30 - 18,000 Hz, ±3 dB)
Signal-to-Noise Ratio: 65 dB (weighted, DIN 45 500); 55 dB (unweighted , DIN 45 500)
Crosstalk Attenuation: Side 1 to side 2 : 60 dB Track 1 to track 2 : 35 dB
Harmonic Distortion: 0,3%(from amp. At 0 dB); 3% (from tape at 0 dB record level)
Input Sensitivity/Impedance (max. Voltage at 400 Hz)
Mic : 0,15 mV - 20 mV
Line : 80 mV - 10 V/ 470 k Ω
Radio : 8 mV-1 V/47 k Ω
Output Voltage/Load Impedance (with unlouded output or power output for each channel)
Radio : 0,775 mV/5 k Ω
Line : 1,5 V/0,1 k Ω
Headphones : 5 mV/8 Ω
Power Requirements: 115 V, 230 V, 50 or 60 Hz
Power Consumption: 40 W
Dimensions (W x H x D): 470 x 105 x 230 mm (18-1/2 x 4-1/8 x 9-1/8 inches)
Weight: 6,6 kg (14,5 lb)
4500 NOK
Well know to all Norwegian audiophiles, this is a UK supplied unit in pristine condition with original box manuals and stands. The TCD330 is the top model in the Tandberg range of cassette tape recorders and in many ways compares favourably with open reel machines
The main features of the Tandberg TCD 330 are: 3 heads and off-tape monitoring, mechanical 3 digit tape counter and memory stop, manual tape type selection and capable of handling normal and chrome tapes, belt driven dual-capstan transport.
Typical front loading cassette deck with the cassette compartiment located on the right side of the deck. Tape eject is operated mechanically and the cassette needs to be placed sideways in the cassette well.
Level meters used on the TCD 330 are analog needle VU reading meters. Full-logic transport controls used on the TCD 330 let it respond to the slightest finger contact for fast and effortless transport function selection.
This a Private Sale, there is no return, no guarantee and no exchange. The goods are sold under exclusion of any warranty. Shipping must be organized by buyer.
Specifications:
Tape Speed: 1-7/8 i.p.s.
Speed Tolerance: ±05%
Wow and Flutter: 0,18% (peak DIN 45 511); 0,12% (WRMS)
Frequency Response (DIN 45 500): 20 - 20,000 Hz (30 - 18,000 Hz, ±3 dB)
Signal-to-Noise Ratio: 65 dB (weighted, DIN 45 500); 55 dB (unweighted , DIN 45 500)
Crosstalk Attenuation: Side 1 to side 2 : 60 dB Track 1 to track 2 : 35 dB
Harmonic Distortion: 0,3%(from amp. At 0 dB); 3% (from tape at 0 dB record level)
Input Sensitivity/Impedance (max. Voltage at 400 Hz)
Mic : 0,15 mV - 20 mV
Line : 80 mV - 10 V/ 470 k Ω
Radio : 8 mV-1 V/47 k Ω
Output Voltage/Load Impedance (with unlouded output or power output for each channel)
Radio : 0,775 mV/5 k Ω
Line : 1,5 V/0,1 k Ω
Headphones : 5 mV/8 Ω
Power Requirements: 115 V, 230 V, 50 or 60 Hz
Power Consumption: 40 W
Dimensions (W x H x D): 470 x 105 x 230 mm (18-1/2 x 4-1/8 x 9-1/8 inches)
Weight: 6,6 kg (14,5 lb)
4500 NOK
- Originalemballasje
- Ja
- Orig. kvittering
- Ja
- Forsendelse
- Må hentes
