Ortofon 2m red Solgt

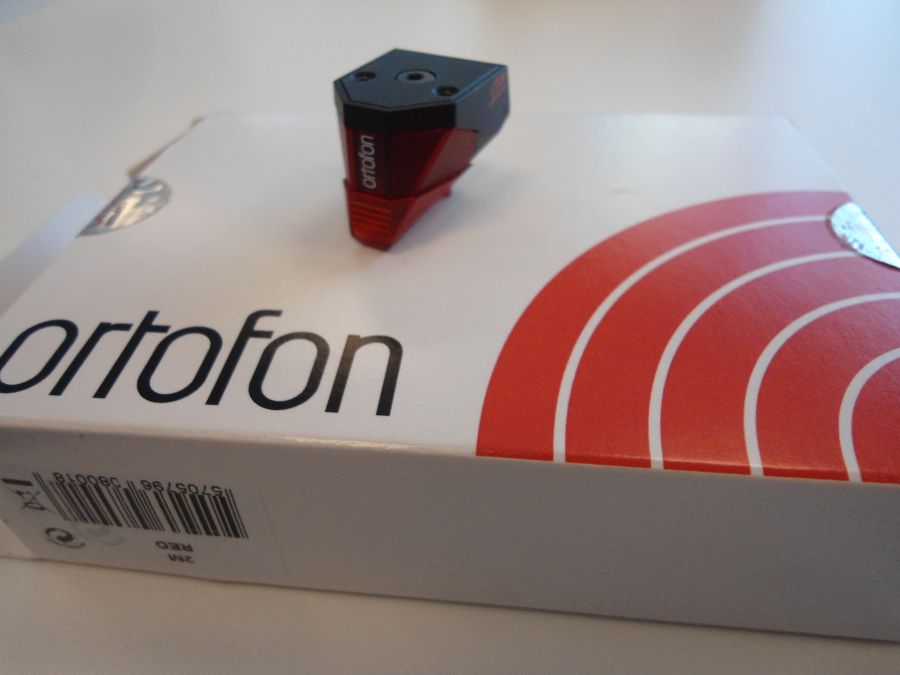

Selger en lite brukt Ortofon 2 m red moving magnet pickup, grunnet overgang til MC pickup.

Spilt max 100 timer. Enkel og sette opp, spiller meget bra for prisen.



Selges for kr 500, kan sendes på kjøpers regning, foretrekker dog lokalt salg i stavanger området. Har embalasje/alt følger med



https://www.techradar.com/reviews/audio-visual/hi-fi-and-audio/hi-fi-accessories/ortofon-2m-red-940792/review



Output voltage at 1000 Hz, 5cm/sec.

5,5 mV

Channel balance at 1 kHz

1,5 dB

Channel separation at 1 kHz

22 dB

Channel separation at 15 kHz

15 dB

Frequency range at - 3dB

20-22.000 Hz

Frequency response

20-20.000 Hz + 3 / - 1 dB

Tracking ability at 315Hz at recommended tracking force

70 µm

Compliance, dynamic, lateral

20 µm/mN

Stylus type

Elliptical

Stylus tip radius

r/R 8/18 µm

Tracking force range

1,6-2,0g (16-20 mN)

Tracking force, recommended

1,8 g (18 mN)

Tracking angle

20°

Internal impedance, DC resistance

1,3 kOhm

Internal inductance

700 mH

Recommended load resistance

47 kOhm

Recommended load capacitance

150-300 pF

Cartridge colour, body/stylus

Black/Red

Cartridge weight

7,2 g
