Beautifully Built.

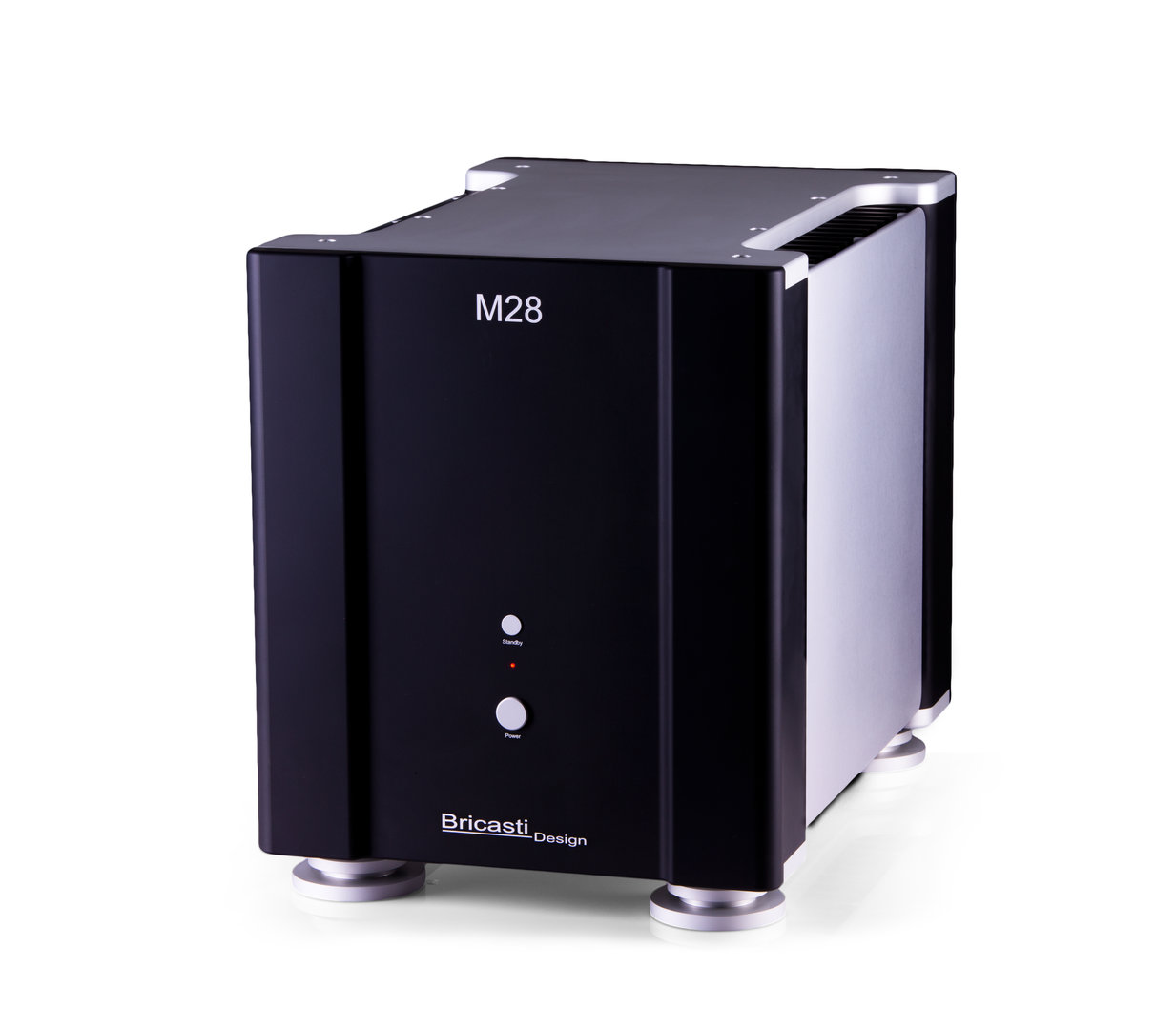

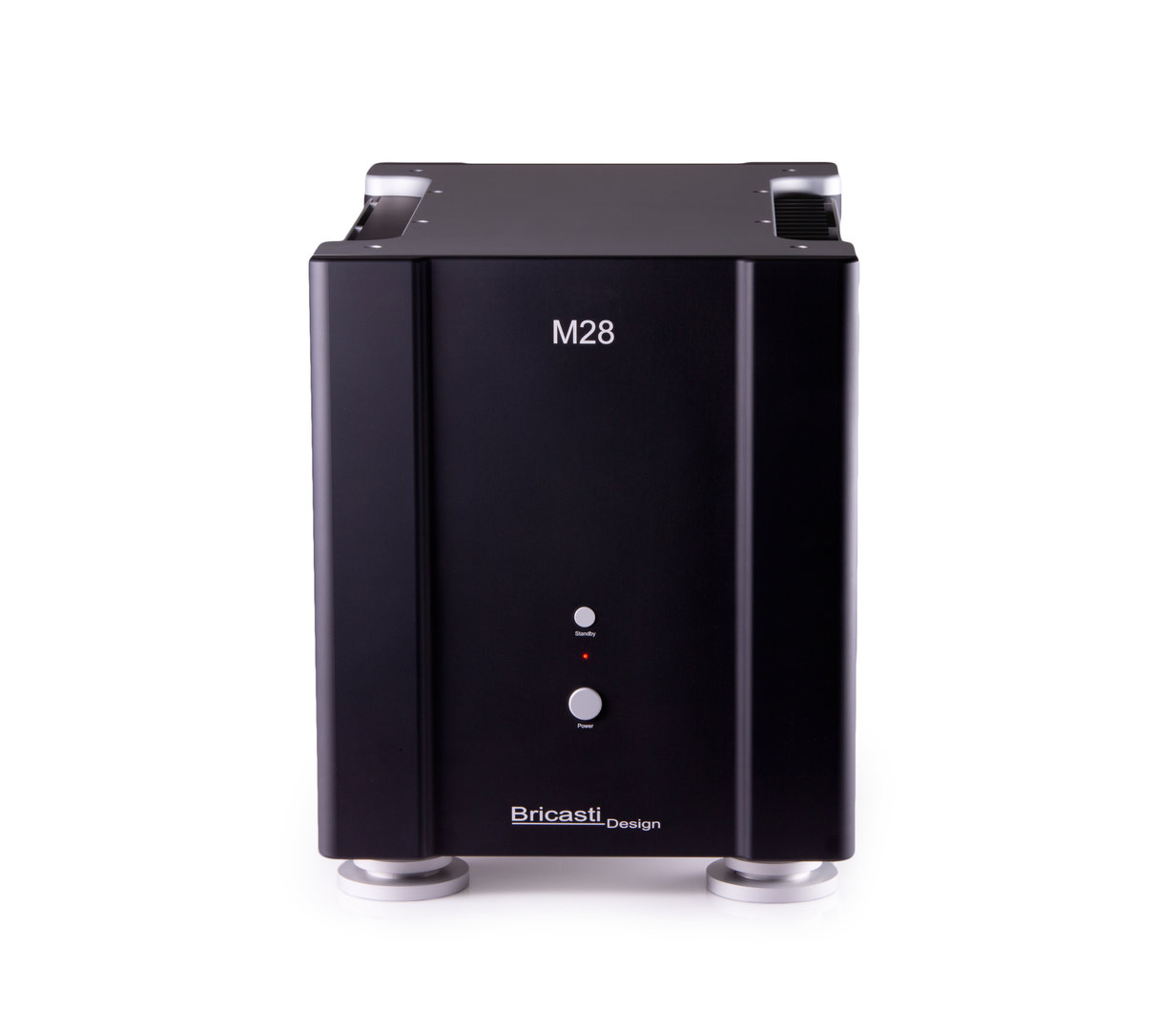

A harmony of concept and function, the M28 amplifier exhibits the precision and beauty of a thoroughly engineered system. The milled aluminum chassis is carved to exacting tolerances. Each electronic element mates to a purpose built location within the chassis. Thoughtful use of mass and passive ventilation assure the uniform distribution of heat and a cool touch under any load. Performance criteria is assured through both electronic and thermal design as well as an extensive analysis of each completed system.
Sound Mirror.
John Newton, Recording Engineer and owner of Sound Mirror Mastering and Recording in Boston shares his insights into the Bricasti M28 monoblock amplifier in daily use. With more than 40 years of experience, Sound Mirror has produced recordings that are consistently acknowledged by the press, industry peers, and have racked up more than 80 GRAMMY nominations and awards.
«We at Soundmirror can’t thank you enough for your splendid development of the M28 and M15 amplifiers. Our experience with the first M28’s that we received was amazing. We had been using well known expensive amps in all of our listening rooms and were quite happy with them, until we heard your mono blocks. These are the first amplifiers that we’ve ever used that we couldn’t hear. It’s amazing to listen to classical music and not notice that there’s an amplifier working in the audio path. Power, clarity and frequency response are simply not an issue anymore. All of our clients who’ve worked in these listening rooms are equally amazed at the quality of the reproduction.
When the M15’s arrived they allowed us to economically equip another listening room with Bricasti amps by using the M15’s for the rear channels in each room thus freeing up M28’s for use in the front of the second room. We will equip our third room with Bricasti equipment when it is renovated late this year bringing our inventory of amps to 12 units!»
John Newton
Owner, Sound Mirror
Total Harmonic Distortion THD+N less than 0.005% 20hz-20kHz at full rated power into 8, 4 and 2 ohms.
Power 200W into 8 ohms, 400W into 4 ohms, 800W into 2 ohms.
Frequency response 10hz-150kHz, within 0.5db.
Signal to Noise greater than 95db at full rated.
Power Topology Fully Differential, bi polar.

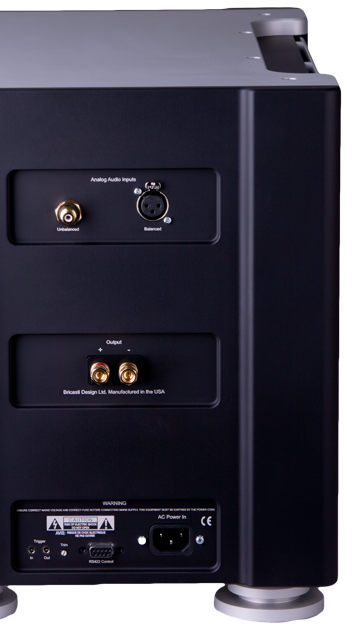

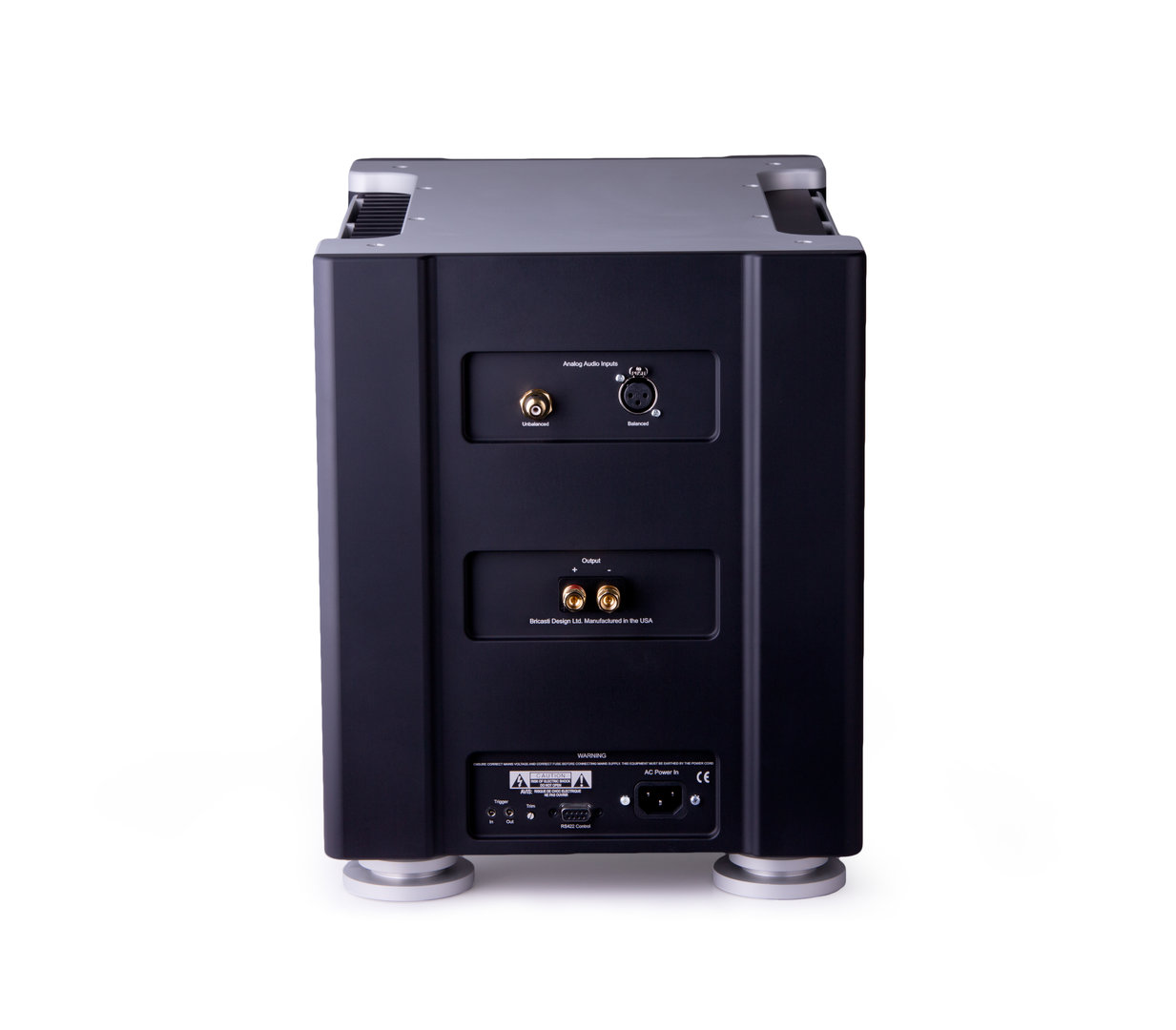

Balanced Input XLR connector 200k ohm impedance.
Unbalanced Input RCA connector 100k ohm impedance.
Weight 85 lbs.
Shipping Weight 100 lbs.
Finish Anodized Aluminum.
Mains Voltage set at factory 100, 120, 220, 230, 240 VAC, 50 Hz – 60 Hz.
Trigger In TRS connector for 5V external trigger.
Input Trim 0db, -6db, -12db,-18db of attenuation.
Power consumption 60W standby, 2W idle.
A harmony of concept and function, the M28 amplifier exhibits the precision and beauty of a thoroughly engineered system. The milled aluminum chassis is carved to exacting tolerances. Each electronic element mates to a purpose built location within the chassis. Thoughtful use of mass and passive ventilation assure the uniform distribution of heat and a cool touch under any load. Performance criteria is assured through both electronic and thermal design as well as an extensive analysis of each completed system.
Sound Mirror.
John Newton, Recording Engineer and owner of Sound Mirror Mastering and Recording in Boston shares his insights into the Bricasti M28 monoblock amplifier in daily use. With more than 40 years of experience, Sound Mirror has produced recordings that are consistently acknowledged by the press, industry peers, and have racked up more than 80 GRAMMY nominations and awards.
«We at Soundmirror can’t thank you enough for your splendid development of the M28 and M15 amplifiers. Our experience with the first M28’s that we received was amazing. We had been using well known expensive amps in all of our listening rooms and were quite happy with them, until we heard your mono blocks. These are the first amplifiers that we’ve ever used that we couldn’t hear. It’s amazing to listen to classical music and not notice that there’s an amplifier working in the audio path. Power, clarity and frequency response are simply not an issue anymore. All of our clients who’ve worked in these listening rooms are equally amazed at the quality of the reproduction.
When the M15’s arrived they allowed us to economically equip another listening room with Bricasti amps by using the M15’s for the rear channels in each room thus freeing up M28’s for use in the front of the second room. We will equip our third room with Bricasti equipment when it is renovated late this year bringing our inventory of amps to 12 units!»
John Newton
Owner, Sound Mirror
Total Harmonic Distortion THD+N less than 0.005% 20hz-20kHz at full rated power into 8, 4 and 2 ohms.
Power 200W into 8 ohms, 400W into 4 ohms, 800W into 2 ohms.
Frequency response 10hz-150kHz, within 0.5db.
Signal to Noise greater than 95db at full rated.
Power Topology Fully Differential, bi polar.
Balanced Input XLR connector 200k ohm impedance.
Unbalanced Input RCA connector 100k ohm impedance.
Weight 85 lbs.
Shipping Weight 100 lbs.
Finish Anodized Aluminum.
Mains Voltage set at factory 100, 120, 220, 230, 240 VAC, 50 Hz – 60 Hz.
Trigger In TRS connector for 5V external trigger.
Input Trim 0db, -6db, -12db,-18db of attenuation.
Power consumption 60W standby, 2W idle.
- Originalemballasje
- Ja
- Orig. kvittering
- Ja
- Forsendelse
- Kan sendes
