  1. Super test av Lumin AMP i Mono & Stereo

    6 Kommentarer Av Endpoint Audio - 24.10.2019 12:16
    Lumin er markedets ledende produsent av Streamere - og var de som introduserte avspilling av høyoppløste digitale filer. Når de endelig kommer med en forsterker så gjør de ingenting halvveis. Vi har hatt denne forsterkeren i et halvår og er superimponerte - dette er ekte High End som spiller musikk. Vi har testet denne forsterkeren på "vanlige" høyttalere med lav driftseffekt til ekstremt lettdrevne horn og denne spiller bra på alt.
    Det er ingen overraskelse at Lumin AMP er "Highly Recommended".

    Navn:      E2003B1A-F4CE-4A32-9559-6C9620158A46.png
Visninger: 499
Størrelse: 60.6 Kb

    Navn:      1541D47C-6D68-4E28-84AD-8005831E530E.jpg
Visninger: 695
Størrelse: 110.1 Kb

    HIGHLIGHTS

    Let us first look at some of the LUMIN Amp highlights...
    Multi-Stage transistors amplifier
    Dual Mono power supply and amplifier design
    Fully discrete voltage and current gain stages
    DC-coupled signal path
    Class AB operation
    High input impedance and sensitivity for direct DAC drive
    Intelligent bias and thermal management
    Stereo / Dual Mono / Bridged operation
    CNC single billet aluminum construction
    600VA custom toroidal transformer
    Built-in overload, overheat and DC protection

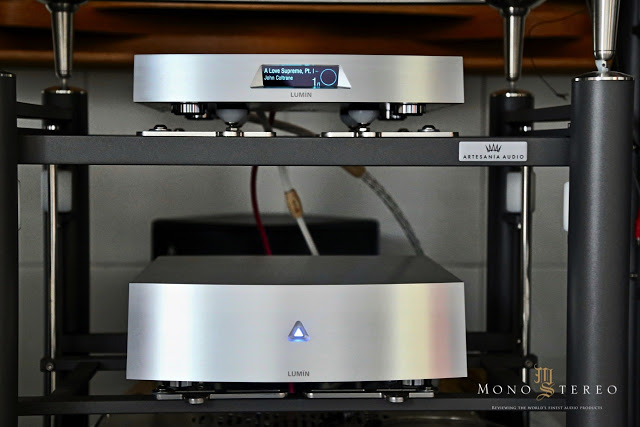

    LUMIN AMP

    A lot is going on under the hood and despite the highly optimized electronic circuits, the LUMIN Amp is a highly complex power amplifier with the most highly thought out innards...

    Navn:      FAD434E6-9D86-43D5-AB0C-CF0E43E40DE9.jpeg
Visninger: 601
Størrelse: 64.9 Kb

    Engineering the Amplifier

    The development of the amplifier was driven by the ambition to create an amplifier with all the attributes to bring the best out of the high definition content that is easily available on the market, and with the good looks to match with the modern household & lifestyle.

    Approaches

    When designing the amplifier, not only it have to excel in the audio performance but it also has to be able to blend into the modern household. The looks match perfectly with the LUMIN player, and with the minimalistic design and a compact dimension, it certainly proves that high-end audio does not mean having many big boxes and sacrificing the interior design of your room. A great amount of effort has been put into the design and engineering of the internal components and the engineering of the thermal management, adding great performance into a designer box without any compromise.

    Navn:      2E6E79DB-FC81-49F7-8078-D79A56BCBA28.jpg
Visninger: 589
Størrelse: 50.3 Kb

    Dual Mono

    There are many advantages to have a dual-mono amplifier in the audio systems - lower output impedance, completely isolated channels for infinite channel separation and a separate power supply for undisrupted performance. That is exactly the reason why the LUMIN amp is a complete dual-mono configuration. Two identical boards with their protection circuitry and dedicated separate power supply operate seamlessly, the only components they are sharing are the core of the transformer and also the AC outlet.

    Navn:      1541D47C-6D68-4E28-84AD-8005831E530E.jpg
Visninger: 695
Størrelse: 110.1 Kb

    Full discreet amplifying circuitry

    The circuitry design of the LUMIN amp is fully balanced, from the input buffer all the way to the voltage game stage. Unlike many amplifiers on the market, this takes the full advantages of the CMRR of the balanced signal, reducing noise and improving over dynamics of the audio system. The voltage gain and current gain consist of a total of three stages and are composed of discrete transistors and resistors for optimal performance. To further reduce unwanted coloration and distortion, LUMIN amp is fully DC coupled, meaning there is not a single capacitor within the signal path.

    Navn:      2DB326F0-D7BE-47F4-BBC1-370B349CF793.png
Visninger: 506
Størrelse: 176.0 Kb

    Intelligent Bias

    Bias is one of the most important tuning of a class AB amplifier. The bias correlates with the crossover point of the P and N channel transistors and crucial calibration is needed to achieve undetectable crossover distortion. The LUMIN amp has a proprietary bias design that eliminates the crossover distortion but also strikes the balance between the classical Class-A sound and thermal efficiency. This proprietary bias system ( VARI-bias ) monitors and varies the bias depends on the music load, input and also the thermal condition of the overall system.

    Navn:      342BCBB6-3224-4C05-8BB0-6135272E8130.png
Visninger: 570
Størrelse: 173.0 Kb

    High current power supply

    There is a total of 2 transformers and 13 sets of power supply and regulators within the LUMIN amp. These transformers and regulators are designed to work together and hence the main transformer of the LUMIN amp is a full custom design. The 13 sets of power supply provide isolated power for the different stages of the circuit, left and right channel. It provides clean and stable power and output no matter what music you throw at it.

    Navn:      D30A6773-CDFE-4AFC-90BC-13B32921A6E3.png
Visninger: 568
Størrelse: 287.7 Kb

    CNC Chassis

    To achieve the perfect finish, the chassis of the Lumin Amp is machined from a single piece of aluminum. Just like most Lumin players, there are no joints and screws to disrupt the lines and design of the unit. The chassis also acts as a passive heatsink for the transistors of the unit. This stable platform gives not only the looks, thermal performance but also solid protection for the delicate electronics houses inside away from the EMI noise in the atmosphere.

    Navn:      A2787AE2-453B-4B08-9AD9-4F1765ABA6C6.jpg
Visninger: 593
Størrelse: 44.5 Kb

    Sum up

    The Lumin amp was developed from the ground up to be a perfect companion not only when it is used with other Lumin players, but it also performs exceptionally with other sources and preamps. The versatility of the function with the different operation modes and also the thoughts that put into this amplifier is unprecedented in the amplifier market in this price range.

    OPERATIONAL

    LUMIN Amp was designed from the ground up to work seamlessly and straightforwardly. The minimalistic front panel host only the on/off button, that emanates a pleasing dim blue light when it operates.



    The back panel offers logical placement of the inputs and outputs as well as the IEC power inlet. On the far left and right you'll find the XLR and RCA inputs with enough space around them to host very thick cables. Like it! Next to them are speakers binding post and the middle is reserved for power connections. On top of the IEC inlet, there are two selectors. The top switch lets you select the single-ended or balanced input and below the stereo/bridge selector. When used as a dual-channel power amplifier the stereo option is selected and if LUMIN Amps are used as monoblocks the selector needs to be switched to bridge position.

    Navn:      007175BA-665C-4320-BAD7-90124915F051.jpg
Visninger: 589
Størrelse: 41.1 Kb

    If something goes wrong the front light will instantly turn into the red and blink. This is most likely in the case of overloading. During my evaluation, I've managed to push the amplifier only once into the projection mode by driving the power hog inefficient speakers with a concert like levels.



    I appreciated the clean and spacious back panel with more than enough space to connect various cables without a hassle. Such luxury is not always a case yet with LUMIN Amp it shows that all the time and proper measures were taken from the very beginning.

    Navn:      1BE0FD78-EE33-4EA0-B422-8F6773C32E59.jpg
Visninger: 591
Størrelse: 84.1 Kb

    The day to day operation was a no brainer with LUMIN Amp and I've really enjoyed the music rather than needed to constantly evoke my critical observation "logical board" . This is the compliment that any amplifier designer should be striven for...

    THE MUSIC

    Despite being "overplayed" by many, Paco de Lucía, Al Di Meola, John McLaughlin - Friday Night In San Francisco is still among my favorite live guitar albums. The comprehensive blend of guitar mastery and fire cracking dynamics makes this track an easy reference for any amplifier evaluation. The casual listener might not get the full scope of how much energy must be moved to replay this album. Even at the entry-level of satisfying impact. Making it a true stand out takes much more than ordinary amp's inner heart.

    I've clearly remembering standing up and checking the heat on the LUMIN Amp chassis after playing the "Mediterranean Sundance/Rio Ancho" at a constant exposure of over 90dB throughout the whole duration of the eleven and half minutes. Yes, the LUMIN AMP can get quite warm when pushed constantly for an extended time, but the heat sort of reflects the actual sonic delivery. Trust me; not all amps that get hot can stand the heat of the moment!



    Beyond The Missouri Sky by Charlie Haden & Pat Metheny belongs to my desert discs collection. Yes, the Haden's bass is a bit oversaturated (intendedly), but the pure music intake is of such occurrence, that. Metheny/Haden timeless interplay is magical and every note seems to be in sonorous harmony and with perfect place and timing.

    There is so much to abstract from this record and as it's the album I simply cannot get pestered by countless replays. Knowing it so well, I can easily distinguish any unwanted anomalies.

    Beyond The Missouri Sky's harmonic richness is off charts and the amplifiers that are not voiced properly can too quickly escape the proper balancing act.



    LUMIN Amp has shown how thoroughly the Amp's inner core was tuned. The ability to detect all the smallest nuances of sonic detailing without truncating the needed velocity of acoustic anchor points, as well as diminishing the spectral harmonicity is certainly worthy of more than just pointing out. It's stellar!

    The LUMIN Amp ability to handle the Om - Kirikuki quirkinesses was shocking to say at least. The "Lips" is a sonic chameleon that literary clutches the amplifier's guts and demands no slouch control. When not in the needed lock and grip the "Lips'" avant-garde portraying falls apart, projecting a chaotic reflection of what should be a pleasing aural kaleidoscope. And this is what differentiates the mediocre amps from true standouts, worthy of high-end audio designation.



    LUMIN Amp stepped out of ordinary operation and let the music breath and expands freely; both harmonically and space-wise, easily painting the sonic canvas with distinct and elevated quality.

    It's quite something how LUMIN Amp can provide from such a subtle control from a relatively small footprint. This was immediately manifested with the Anna Netrebko, Claudio Abbado, Nicola Ulivieri, Andrea Concetti, Giuseppe Verdi Symphony Chorus of Milan, Mahler Chamber Orchestra - Sempre libera.

    The "Lucia di Lammermoor: Act 2. Ardon gli incensi..." the amazing reciprocation between Netrebko voice and glass harmonica calls out for the amp with non-ordinary high-land crystal water like purity that can resonate on both parts. This is where the harmonic density becomes utterly challenged and many, even more, expensive amps can struggle in this regard.



    LUMIN Amp has freed both vocal and glass harmonica to expand unreservedly. One of the kind resonating tonal etching was again presented with an unexpected level of timber complexity that not only allowed a step-up level of sonic contour but also let the collision drama to unfold at the inspiring scale.

    A short and mesmerizingly sweet "Calasone (Intavolatura di Liuto, Book 2)" from Francesca Torelli - Piccinini: Intavolature Di Liuto E Chitarrone - Volume secondo is another study of subtleness. The tone pureness and atmospheric details reveal so much underlying magnificence that when replayed correctly can provide an inspiring mirroring of this exquisite recording. With this particular song, the LUMIN Amp has expertly established a very intimate connection within the very roots of an emotional nucleus, thus forming an instantly binding interactive experience. I really cannot say that for a lot of amplifiers around the Amp's given price.

    There is no escape to ardent massiveness and grander momentums of Bruckner: Symphony 8 / Strauss: Metamorphosen with Staatskapelle Dresden orchestra under the baton of Giuseppe Sinopoli. It's all about exquisitely imperious and lyrical storytelling on all fronts.

    The sudden shifts of delicate and thunderous passages can at once bring most of the power amplifier amps on their knees. Especially when the orchestra's drive starts to build up at around 5.00 and dynamically evaporates at 5.13. Here a lot of amplifiers simply fail to portray the dynamic illusion of the full-scale orchestra. There are no short cuts with this hefty task in action... I was genuinely surprised by the LUMIN Amp's energetic magnitude that could even stand the enormous force of multiple brass instruments. At this passage, many amps fail to regain the full metallic grittiness. Like in the real world, the tin instruments need to resonate and bite with the grip to feel authentic.

    Similar to most of the amplifiers this album certainly pushed LUMIN Amp on the very edge of performing ability, but despite being thrust to its very limits, the LUMIN's amplifier didn't collapse. Quite a feat.

    The LUMIN Amp's dual-mono construction is certainly a big reason behind the high spirited performance and capacity o layering complex relief like sonic structures.

    It would surely be interesting to observe how a pair of bridged LUMIN Amps would handle this utmost demanding task compared to the sole performance.

    LUMIN Amp stereo power amplifier capability to deliver highly evocative music performance across all genres is more than worthwhile to explore by anyone in search of a potent and high-performing solid-state amp.

    THE CONCLUSION

    Like with LUMIN X1, LUMIN T2 audiophile network players the LUMIN Amp clearly follows the highly distinguished path of this very prolific and pin-point oriented high-end audio manufacturer.

    Impressively stylish chassis, milled from a single block of aluminum is most certainly one of the factors closely connected with the LUMIN Amp high-performing act. It acts both as heatsink and resonance and micro-vibrations damper. Only in recent years, high-end audio companies are taking seriously the importance of proper material implementation as well as how the construction design deals with the hubris of unwanted electromechanical noise. LUMIN team did a splendid job with the enclosure design and this was evident with minuscule reaction to the various aftermarket audiophile feet.



    The unobtrusive zen-like refined lines are both modern and timelessly stylish in its simplicity. There is something substantially beautiful about the LUMIN Amp's Bauhaus like shape. Nothing seems to be left to chance and this results in a very distinctive aura. Amp is instantly recognizable at the very first eye glance. It has a distinguished standalone quality and it can as easily fit in the high-end audio rack without screaming for the attention. It's not exactly to finalize such a design, yet LUMIN Amp got it!

    LUMIN Amp is not just another solid-state amplifier. The LUMIN took a different path than usual in achieving remarkable sonic potency. Instead of chasing the complexity for the sake of complexity, they've taken a very unconventional path. The path of refined simplicity, where the less is more! I'm sure most of you are familiar with the famous Einstein quote: “Everything should be made as simple as possible, but no simpler." This is rarely pursued up to the objective plane, but LUMIN really did their homework in this regard.



    By removing the parts from the circuits LUMIN has pursued a painstaking and uberly time-consuming quest for refinement. This brought many challenges, but the end results speak for itself. By limiting the frequency response to 40.000 Hz they've been able to considerably reduce the number of electronic parts in the circuits, thus providing more direct, faster sound without sacrificing the resolution. In the era where specs are an epitome on the audiophile throne, LUMIN made quite a bold move and succeded.



    The level of LUMIN Amp immediacy, dynamic control and the absence of self imprint belongs to the league of its own. Especially at this price. By eliminating the electronic components LUMIN team has managed to optimize the sound and narrowing the frequency spectrum to where they've felt it's of essential spectrum's influence. While still beyond the listening spectra, the step by step optimization allowed the impressive reduction of parts count. And as state above, the sonic result is the harmonically rich transmission of highly articulated sonics.

    LUMIN Amp is a 21st-century high-end audio audiophile and music lover's amplifier. At it's given price point, no everything was pushed to the extremes so that no corners would be cut.

    The LUMIN Amp has not only proven to be a great match with the LUMIN's own audiophile network players. During my extended listenings, it has manifested a very broad synergy with several preamplifiers. The cherry on the top of the cake was LUMIN Amp's ability to be directly driven by the DACs. This puts the LUMIN Amp among very few amps in which input impedance allows such a purist partnering.

    This high-performing amp steps boldly into quite dense and competitive territory with more than enough assets to seriously challenge what's out there at the given price range and some above...

    For what it represents sonically I'm happily granting LUMIN Amp the Mono and Stereo Highly Recommended Product award! I surely didn't expect such a matured and highly refined amplifier from the company that is so particularly oriented in the digital audio realms! There are the underlying intriguing insights related to this subject matter that will further unfold in the future here at Mono and Stereo, so do stay tuned!

    Matej Isak


    Les hele gjennomgangen her!
    https://www.monoandstereo.com/2019/1...eview.html?m=1

    Mvh
    Tom Egil
    tom@endpointaudio.no
    47832922

    Navn:      CD80E4CF-21E5-429B-A388-88C6D76194AD.jpg
Visninger: 487
Størrelse: 17.7 Kb
    Siste redigert av Endpoint Audio; 24.10.2019 kl. 12:25.

  2. Antall kommentarer 6

    Kommentarer

  3. #2
    Bransjeaktør Erdal Stereo's Avatar
    Ble medlem
    Jun 2006
    Innlegg
    55
    Tagget i
    0 Innlegg
    Se min butikk
    Klikk her
    Torget
    1
    En meget lovende test, helt sikkert en drøm med Lumin sine streamere.

  4. #3
    Bransjemedlem Endpoint Audio's Avatar
    Ble medlem
    Apr 2013
    Sted
    Tønsberg
    Innlegg
    612
    Tagget i
    0 Innlegg
    Se min butikk
    Klikk her
    Torget
    9
    Ja - bruker denne sammen med X1 på noen veldig lettdrevne høyttalere og det spiller flott.

  5. #4
    Hifi Freak Zerostat's Avatar
    Ble medlem
    Jun 2003
    Sted
    Skjetten
    Innlegg
    3,432
    Tagget i
    0 Innlegg
    Torget
    3
    Gratulerer Tom Egil.

    Hvis denne ampen har samme lydfilosofi som T2, er dette en vinner. Uansett har jeg klokketro på den i utgangspunktet. Skulle gjerne hatt den på test.

    Den koster en del, men er sikkert verdt hver eneste krone. Skulle gjerne sett at Lumin hadde laget en "Trickle-Down" av den i en T2 kasse.

    Jeg har en T2 som overgår alt jeg har hatt av DAC'er og Streamere med god margin. Etter at jeg fikk denne i hus har jeg ikke spilt vinyl.

    Lumin er bare Lumin. Kvalitet så det holder.

    Vh
    En Super-Fan av Lumin.
    Siste redigert av Zerostat; 27.10.2019 kl. 14:19.

  6. #5
    Bransjemedlem Endpoint Audio's Avatar
    Ble medlem
    Apr 2013
    Sted
    Tønsberg
    Innlegg
    612
    Tagget i
    0 Innlegg
    Se min butikk
    Klikk her
    Torget
    9
    Takk for det Zerostat! Lumin lover endel nyheter i 2020 så vi får se hva de kommer med.

  7. #6
    Hifi-entusiast plasma's Avatar
    Ble medlem
    Nov 2009
    Sted
    Bergen
    Innlegg
    124
    Tagget i
    0 Innlegg
    Hva er prisen?

  8. #7
    Bransjemedlem Endpoint Audio's Avatar
    Ble medlem
    Apr 2013
    Sted
    Tønsberg
    Innlegg
    612
    Tagget i
    0 Innlegg
    Se min butikk
    Klikk her
    Torget
    9
    Prisen er 139.000,-
